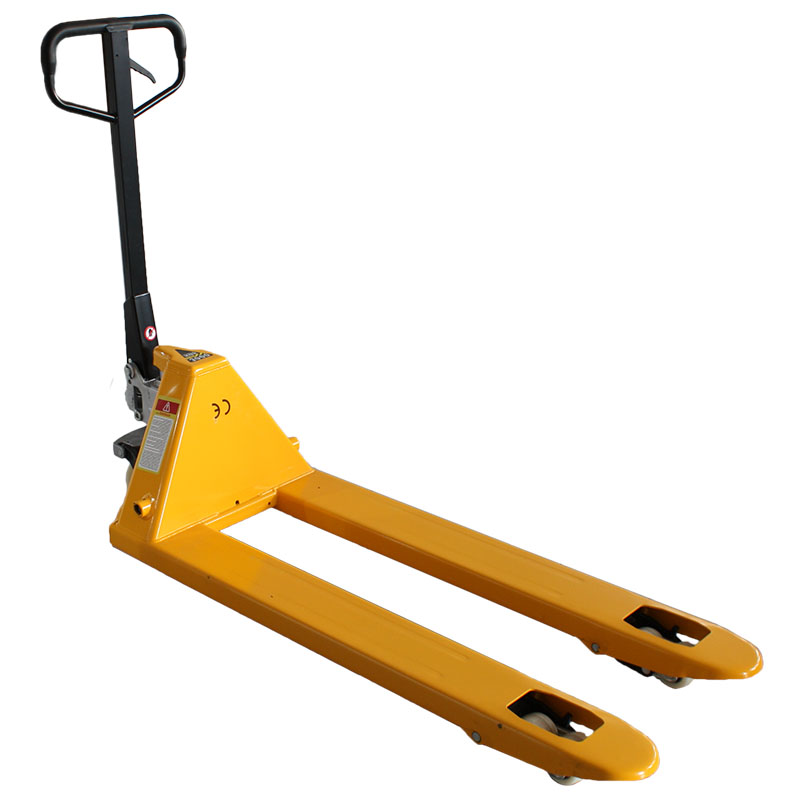

3.5 TON STANDARD HAND PALLET JACK (FULL DESCRIPTION)
🏗️ General Definition
A 3.5 ton pallet jack is:
- A manual hydraulic lifting and moving device
- Used for standard and heavy industrial pallets
- Rated for 3500 kg maximum load capacity
- Operated by a hand pump and release lever system
It is commonly used in environments where normal pallet jacks are insufficient for heavy or dense loads.
⚙️ Construction & Key Features
🔹 Frame & Build
- Heavy-duty reinforced steel chassis
- Designed for high-stress industrial use
- Powder-coated or painted for corrosion resistance
🔹 Fork System
- Fork length: typically ~1220 mm
- Fork width: ~550–685 mm
- Fork thickness is reinforced to handle higher loads
- Suitable for standard Euro and industrial pallets
🔹 Hydraulic Pump System
- Manual integrated hydraulic pump
- Functions:
- Lift
- Hold
- Lower
- Designed for smooth operation even at full 3.5T load
🔹 Wheels & Rollers
- Common wheel options:
- Nylon wheels (standard)
- PU wheels (quieter, floor-friendly)
- Double load rollers under forks for stability
- Steering wheels allow ~200°+ turning radius
⚙️ Technical Specifications (Typical)
Based on industrial 3.5T models:
| Feature | Specification |
|---|---|
| Load Capacity | 3500 kg (3.5 ton) |
| Fork Length | ~1220 mm |
| Fork Width | ~685 mm overall |
| Lift Height | ~115 mm – 200 mm |
| Lowered Height | ~85 mm |
| Steering Angle | ~200°–210° |
| Operation | Manual hydraulic |
| Wheel Type | Nylon or PU |
Example industry specs confirm:
- Capacity: 3500 kg
- Lift height: 115 mm
- Fork size: 1220 × 160 mm per fork
🛠️ How It Works
- Forks slide under pallet
- Operator pumps handle
- Hydraulic system lifts load slightly off ground
- Load is moved manually by pushing/pulling
- Release lever lowers load safely
🏭 Applications
Used in heavy-duty environments such as:
- Warehouses and distribution centres
- Manufacturing plants
- Steel and automotive industries
- Freight and logistics yards
- Bulk goods handling
It is ideal for very heavy or dense pallets (cement, steel, liquids, bulk packaging).
✅ Advantages
- Handles very heavy loads (3.5 tons)
- Strong reinforced construction
- Reliable manual operation (no power needed)
- Cost-effective compared to forklifts
- Suitable for continuous industrial use
⚠️ Limitations
- Requires physical effort under full load
- Not suitable for rough outdoor terrain
- Best used on smooth warehouse floors
- Limited lifting height (~200 mm max)
- Slower than powered pallet trucks
🧠 Simple Summary
A 3.5 Ton Standard Hand Pallet Jack is a high-capacity manual pallet mover designed for up to 3500 kg loads, built with reinforced steel and industrial hydraulics for safe and efficient movement of extremely heavy pallets in warehouses and factories.
