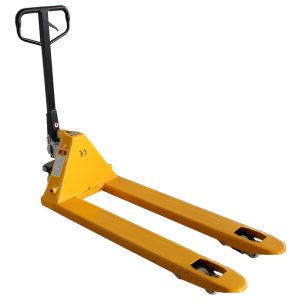

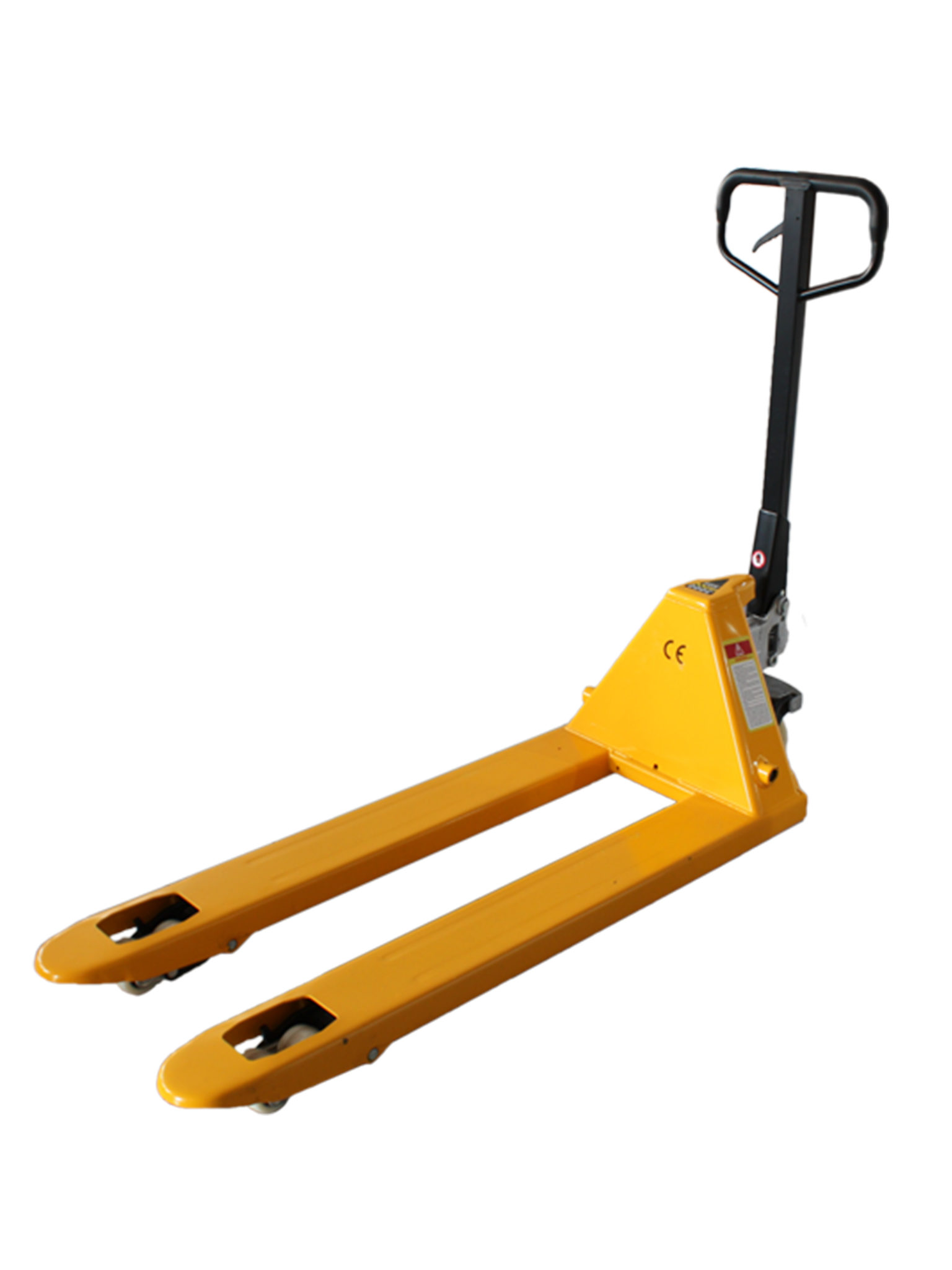

3 TON NARROW HAND PALLET JACK (FULL DESCRIPTION)
🏗️ General Definition
A 3-ton narrow pallet jack is:
- A manual hydraulic lifting and transport tool
- Designed for standard and Euro pallets
- Built with a reduced frame width (narrow design)
- Rated for 3000 kg maximum load capacity
It is mainly used where standard pallet jacks are too wide to operate efficiently in confined areas such as narrow aisles, trucks, and compact storage rooms.
⚙️ Key Construction Features
🔹 Narrow Frame Design
- Overall width typically around 520 mm – 550 mm
- Allows access into:
- Tight aisles
- Narrow racking systems
- Confined loading areas
🔹 Forks
- Standard fork length: ~1100 mm – 1220 mm
- Fork width: ~160 mm per fork
- Designed for Euro and compact pallets
- Strong reinforced steel structure for heavy loads

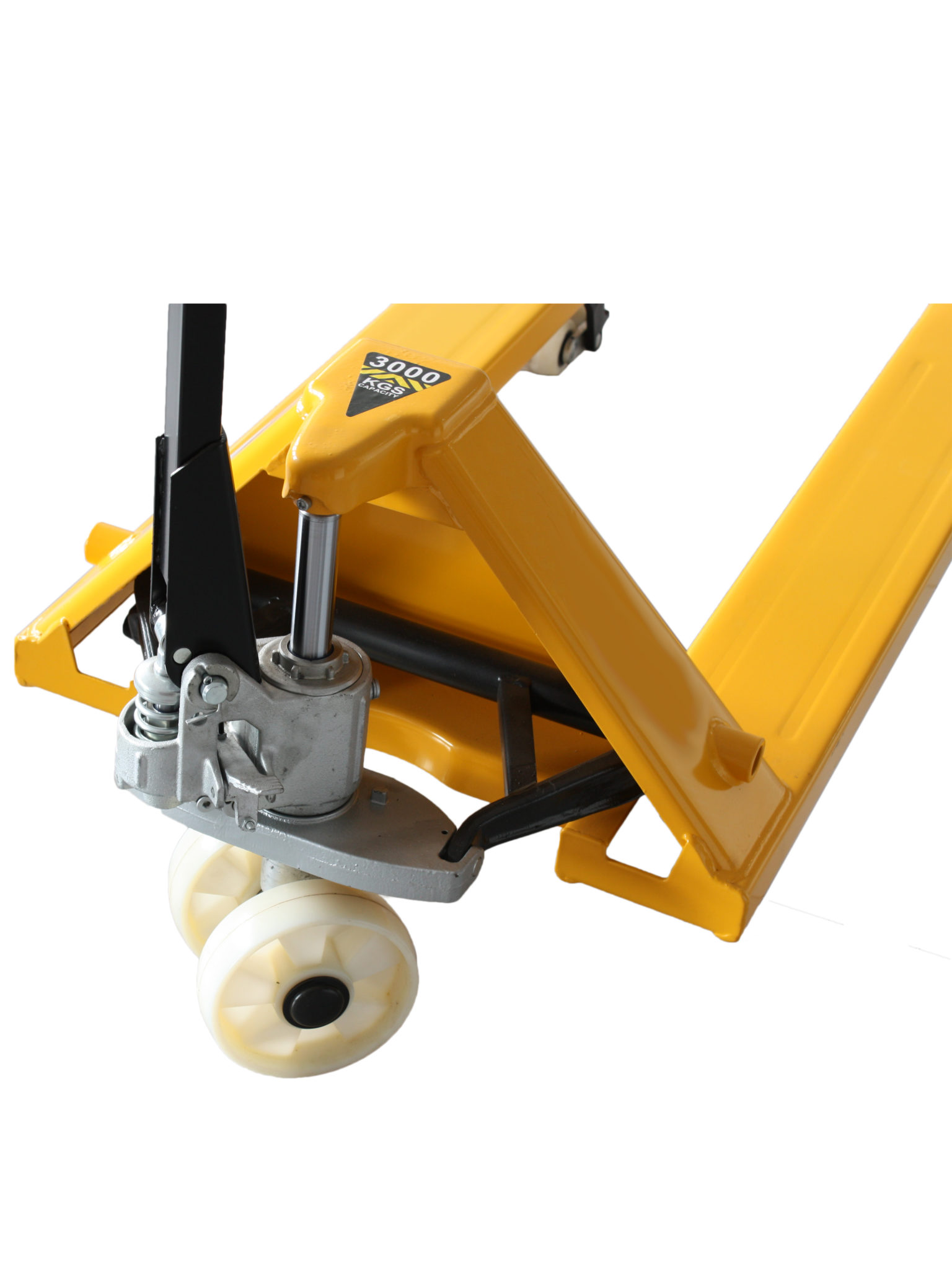

🔹 Hydraulic Pump System
- Manual hand-operated hydraulic jack
- Controls:
- Lift
- Neutral
- Lower
- Smooth lifting for heavy industrial loads
🔹 Wheels
- Usually fitted with:
- Nylon wheels or PU wheels
- Double load rollers for stability
- Designed for smooth indoor concrete floors
⚙️ Technical Specifications (Typical)
| Feature | Specification |
|---|---|
| Load Capacity | 3000 kg (3 ton) |
| Overall Width | ~520–550 mm |
| Fork Length | ~1100–1220 mm |
| Fork Width | ~160 mm per fork |
| Lift Height | ~115–200 mm (model dependent) |
| Lowered Height | ~85 mm |
| Operation | Manual hydraulic |
| Wheel Type | Nylon or polyurethane |
| Weight | ~70–90 kg |
Example specs show narrow models with 550 mm frame width for tight spaces .
🛠️ How It Works
- Forks slide under pallet in tight space
- Hydraulic pump handle lifts load
- Load rises slightly off ground (~115–200 mm)
- Operator moves load manually
- Release lever lowers pallet safely
🏭 Applications
Used in environments where space is limited:
- Narrow warehouse aisles
- Retail stockrooms
- Container loading/unloading
- Small storage facilities
- Manufacturing plants with compact layouts
It is especially useful when standard-width pallet jacks cannot fit between racks or pallets.
✅ Advantages
- Fits into very tight spaces
- Handles heavy loads up to 3 tons
- Improves warehouse efficiency in compact layouts
- Easy manual operation (no power needed)
- Compatible with Euro pallets
⚠️ Limitations
- Less stable than wider pallet jacks on uneven loads
- Not ideal for rough outdoor surfaces
- Requires smooth flooring for best performance
- Limited lifting height (only pallet clearance)
🧠 Simple Summary
A 3 Ton Narrow Hand Pallet Jack is a compact heavy-duty pallet mover designed for 3000 kg loads, built with a reduced width frame so it can operate in tight warehouse aisles where standard pallet jacks cannot fit.
