Description
Full Product Description

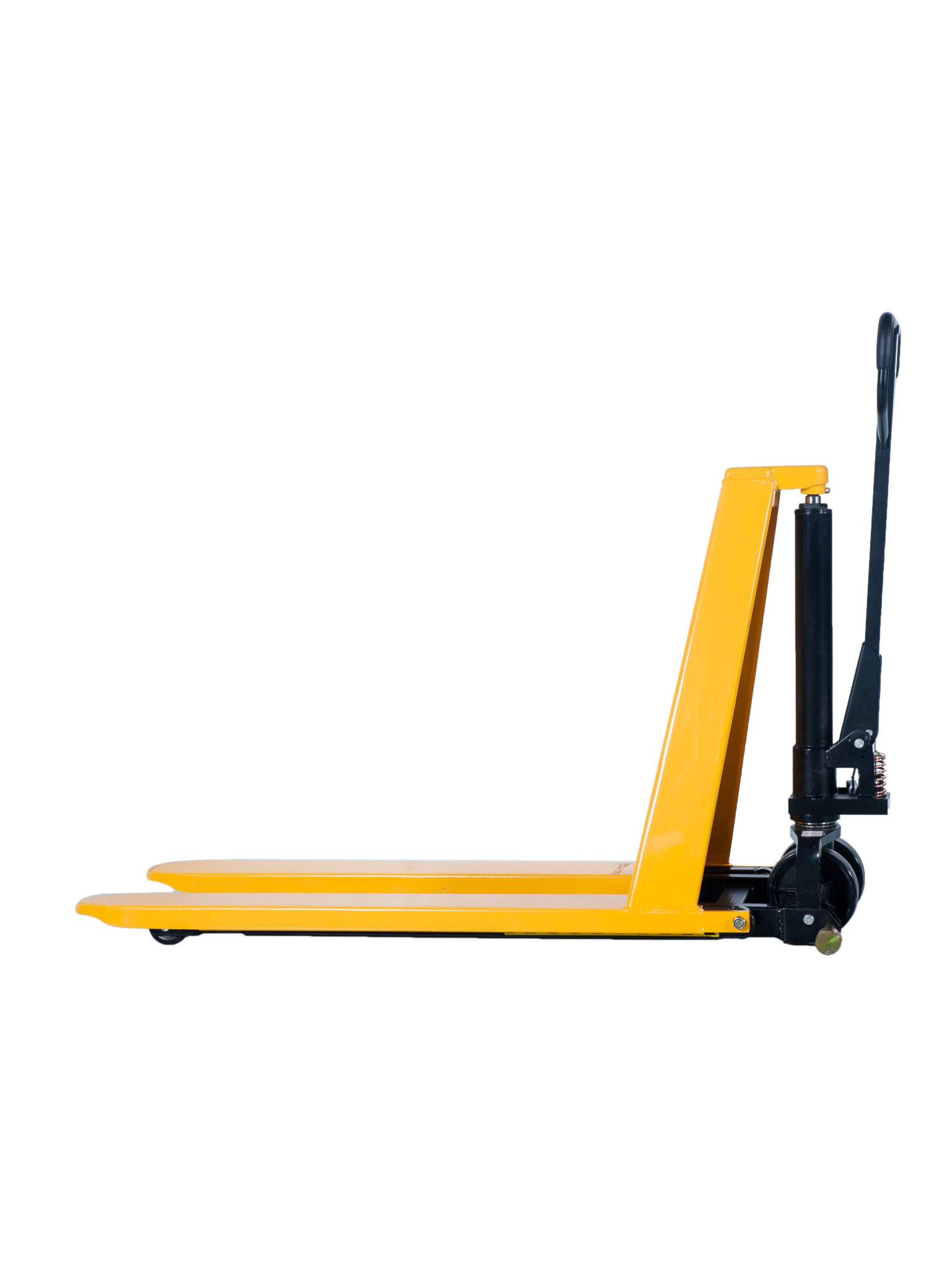

The 1.5T Manual High Lift Pallet Jack is a versatile material handling solution built for environments where ergonomic working height and efficiency are essential. Unlike standard pallet jacks, this unit features a scissor lift mechanism that allows pallets to be raised to a comfortable height for loading, packing, or assembly tasks.
With a 1500kg load capacity, it is ideal for medium-duty applications in warehouses, workshops, and production lines. The manual hydraulic system (hand pump) ensures smooth lifting, while the reinforced steel frame provides durability for daily industrial use.
⚙️ Key Features
- Load capacity: 1500kg (1.5 Ton)
- Lift height: up to 800–810mm
- Lowered height: approx. 85mm
- Fork length: 1150mm (standard pallet size)
- Fork width: 160mm
- Operation: Manual hydraulic pump
- Lift mechanism: Scissor lift (table-height positioning)
- Wheels: Nylon or polyurethane for smooth movement
- Safety: Automatic stabilisers engage at higher lift levels
📐 Typical Specifications
- Overall length: ~1650–1700mm
- Overall width: ~680mm
- Lift height: ±800mm
- Wheel size: 180 × 50mm steering wheels
- Load rollers: 70 × 80mm (double)
- Weight: ~140–170kg
🏭 Ideal Applications
- Packing and dispatch stations
- Assembly lines
- Warehouses & logistics centres
- Retail and distribution environments
- Workstations requiring ergonomic lifting
⭐ Key Benefits
- Reduces operator strain (no bending)
- Functions as pallet jack + lift table
- Improves productivity in packing/assembly
- Compact and easy to manoeuvre
- No electricity required
⚠️ Important Usage Note
- Designed mainly for open-bottom pallets (Euro-type pallets)
- When fully raised, stabilisers engage—not intended for moving loads at full height
