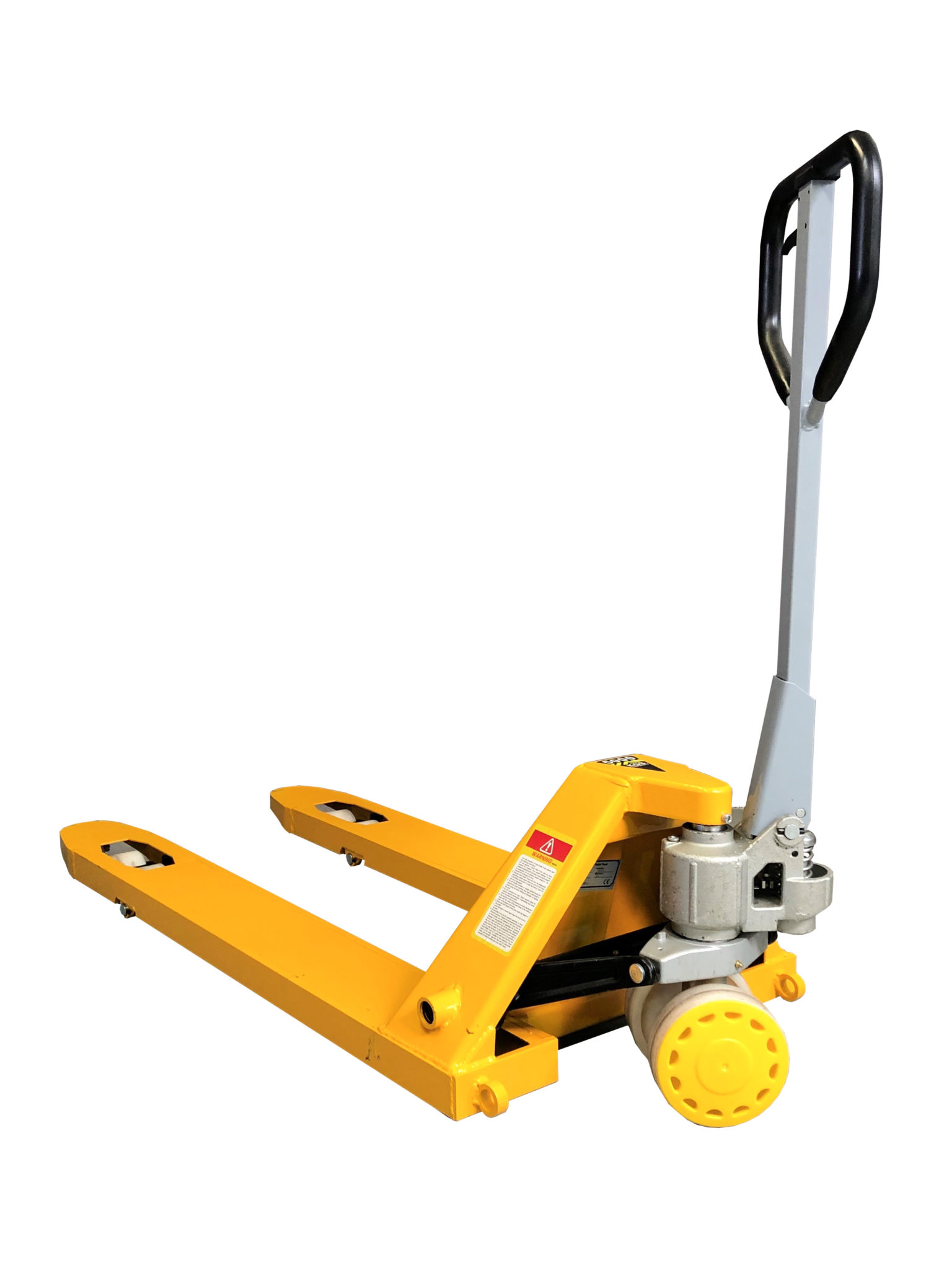

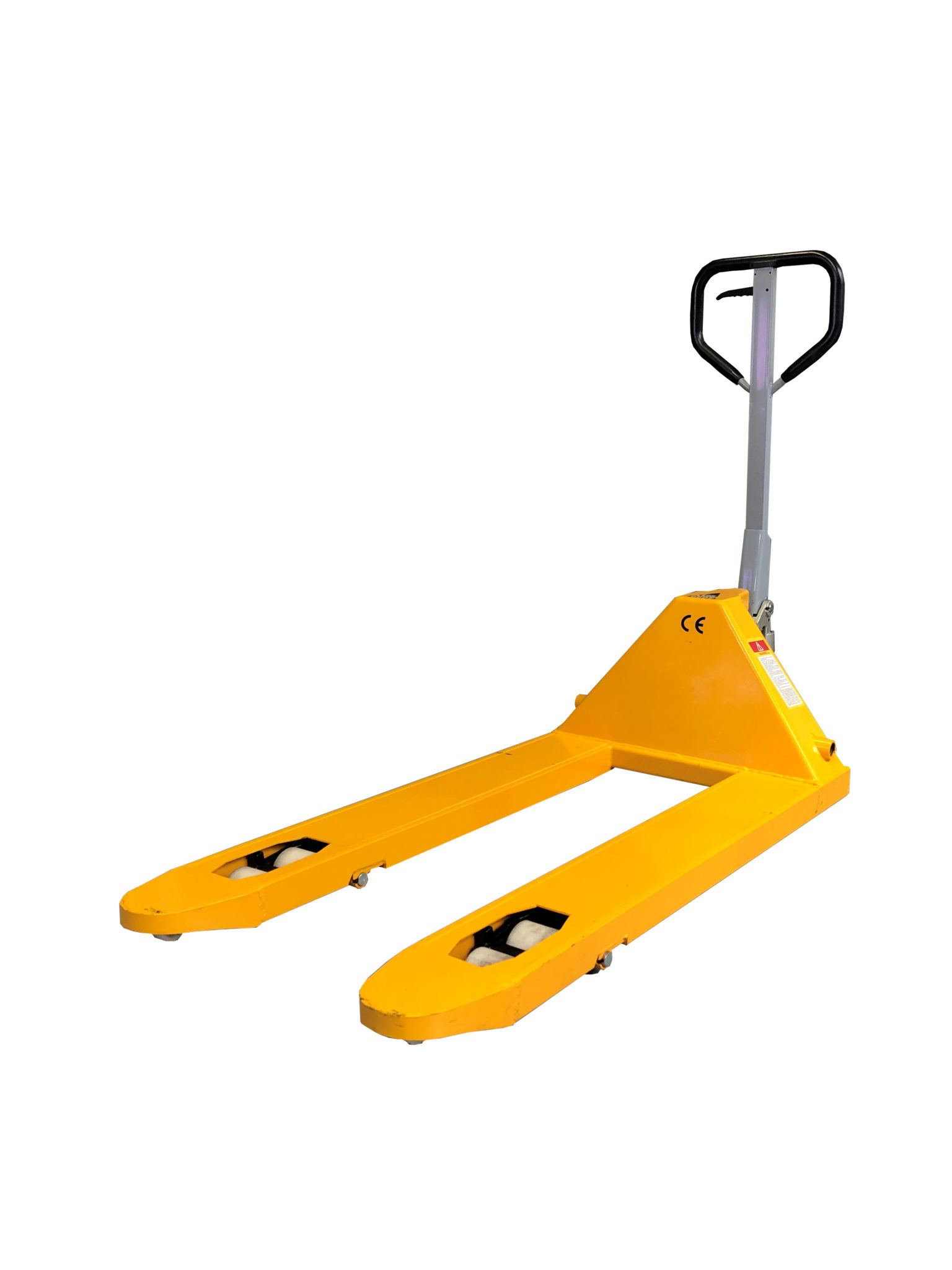

5 TON HAND PALLET JACK (5000KG) – FULL DESCRIPTION
🏗️ General Definition
A 5-ton pallet jack is:
- A manual hydraulic lifting and moving device
- Used for very heavy industrial pallets and bulk loads
- Rated for maximum load capacity of 5000 kg
- Operated using a hand pump and release lever system
It is built for industrial strength, durability, and high-load stability.
⚙️ Construction & Design
🔹 Heavy-Duty Steel Frame
- Reinforced industrial-grade steel chassis
- Extra-thick fork structure to prevent bending under load
- Designed for continuous heavy industrial use
🔹 Fork System
- Fork length: typically ~1200 mm – 1220 mm
- Fork width: ~550 mm or 685 mm options
- Fork height range:
- Lowered: ~85 mm
- Lifted: ~190–200 mm
- Reinforced ribs to handle extreme weight safely
🔹 Hydraulic Pump Unit
- Integrated high-capacity hydraulic system
- Larger piston design to reduce pumping effort under heavy loads
- Smooth lifting even at full 5 ton capacity
🔹 Wheels & Rollers
- Heavy-duty wheel options:
- Nylon wheels (standard for 5T models)
- PU or steel options in some variants
- Features:
- Double load rollers under forks
- Strong steering wheels for load stability
⚙️ Technical Specifications (Typical)
Based on industrial 5T models:
| Feature | Specification |
|---|---|
| Load Capacity | 5000 kg (5 ton) |
| Fork Length | ~1200–1220 mm |
| Fork Width | ~550–685 mm |
| Lift Height | ~190–200 mm |
| Lowered Height | ~85 mm |
| Frame Width | ~680–685 mm |
| Wheel Type | Nylon / PU / steel-core rollers |
| Operation | Manual hydraulic |
Example real-world specs confirm:
- Capacity: 5000 kg
- Lift height: 200 mm
- Fork size: 1220 × 685 mm
🛠️ How It Works
- Forks slide under heavy pallet
- Operator pumps handle repeatedly
- Hydraulic system lifts load off ground
- Load is moved manually (push/pull)
- Release valve lowers load safely
🏭 Applications
A 5-ton pallet jack is used in heavy industrial environments, such as:
- Steel and metal industries
- Manufacturing plants
- Mining and construction supply yards
- Shipping and freight depots
- Bulk material warehouses
It is ideal for extremely heavy or dense loads that exceed standard pallet jack limits.
✅ Advantages
- Highest capacity manual pallet jack (5 tons)
- No electricity required
- Strong reinforced industrial build
- Cost-effective alternative to forklifts
- Reliable in harsh working environments
⚠️ Limitations
- Requires significant physical effort under full load
- Not suitable for rough or uneven terrain
- Limited lift height (~200 mm only)
- Slower than powered equipment
- Needs strong flooring support for heavy loads
🧠 Simple Summary
A 5 Ton Hand Pallet Jack is an ultra-heavy-duty manual pallet truck designed to move up to 5000 kg, built with reinforced steel and industrial hydraulics for safe handling of extremely heavy loads in warehouses and industrial sites.
