Description

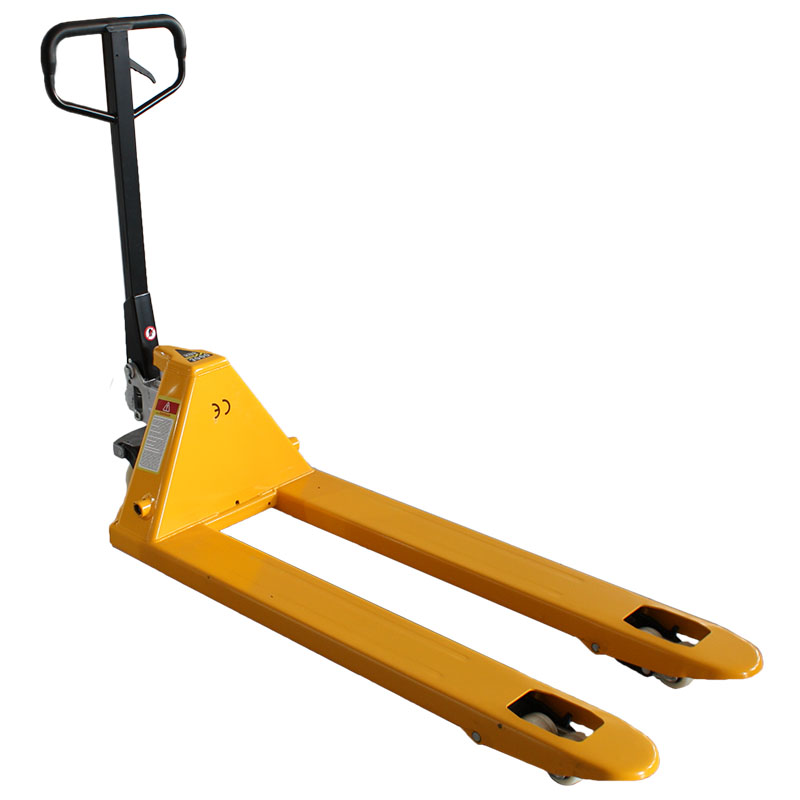

3 TON SUPER NARROW PALLET JACK (FULL DESCRIPTION)
🏗️ General Definition
A super narrow pallet jack is:
- A manual hydraulic pallet truck
- Designed for very tight aisle operation and confined storage areas
- Built with an extra-slim chassis (smaller than standard narrow models)
- Rated for 3,000 kg load capacity
It is commonly used where space is limited, such as:
- Container loading/unloading
- Narrow warehouse aisles
- Tight retail stockrooms
- Small production floors
⚙️ Key Design Features
🔹 Ultra-Narrow Frame
- Frame width typically ~420 mm to 500 mm (model dependent)
- Much narrower than standard pallet jacks (~550–685 mm)
- Allows entry into:
- Tight pallet gaps
- Narrow doorways
- Confined racking systems
(Industry examples show super narrow jacks around ~420 mm width for tight aisle use)
🔹 Fork System
- Fork length: ~1100 mm – 1220 mm
- Fork width: reduced spacing for compact pallets
- Designed for:
- Euro pallets
- Special narrow pallets
- Restricted access loads
🔹 Hydraulic Pump Unit
- Manual hand pump system
- Functions:
- Lift load
- Hold position
- Controlled lowering
- Designed for smooth lifting even at full 3-ton capacity
🔹 Wheels & Rollers
- Usually fitted with:
- PU (polyurethane) wheels for smooth rolling
- Or nylon wheels for very low resistance
- Double load rollers under forks for stability
- Designed for flat indoor surfaces
⚙️ Technical Specifications (Typical)
| Feature | Specification |
|---|---|
| Load Capacity | 3000 kg (3 ton) |
| Frame Width | ~420–500 mm |
| Fork Length | ~1100–1220 mm |
| Lift Height | ~190–200 mm |
| Lowered Height | ~75–85 mm |
| Operation | Manual hydraulic |
| Wheel Type | PU / nylon / steel-core rollers |
🛠️ How It Works
- Forks are inserted into pallet openings in tight space
- Operator pumps handle to activate hydraulic lift
- Load is raised just enough to clear floor
- Load is transported slowly and carefully
- Release lever lowers pallet safely
🏭 Applications
Used in environments where maximum space efficiency is critical:
- Very narrow warehouse aisles
- Shipping containers
- Small storage rooms
- Retail backrooms
- Manufacturing lines with tight layouts
- Mixed pallet stacking areas
It is especially useful when standard pallet jacks physically cannot enter the space.
✅ Advantages
- Fits into extremely tight spaces
- Handles heavy loads up to 3 tons
- Improves warehouse space utilization
- Ideal for container loading operations
- Easy manual operation
⚠️ Limitations
- Less stable than wider pallet jacks under uneven loads
- Not suitable for rough outdoor terrain
- Requires smooth, flat flooring
- Can be harder to maneuver under full load due to narrow wheelbase
🧠 Simple Summary
A 3 Ton Super Narrow Pallet Jack is an ultra-compact industrial pallet mover designed for 3000 kg loads, built specifically to operate in very tight spaces where standard and even narrow pallet jacks cannot fit.
