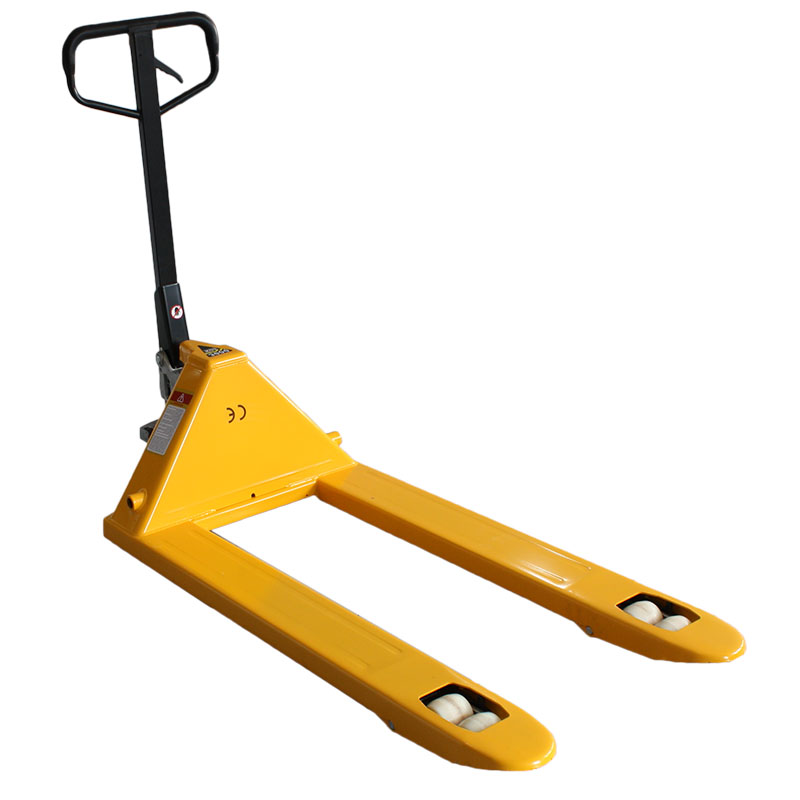

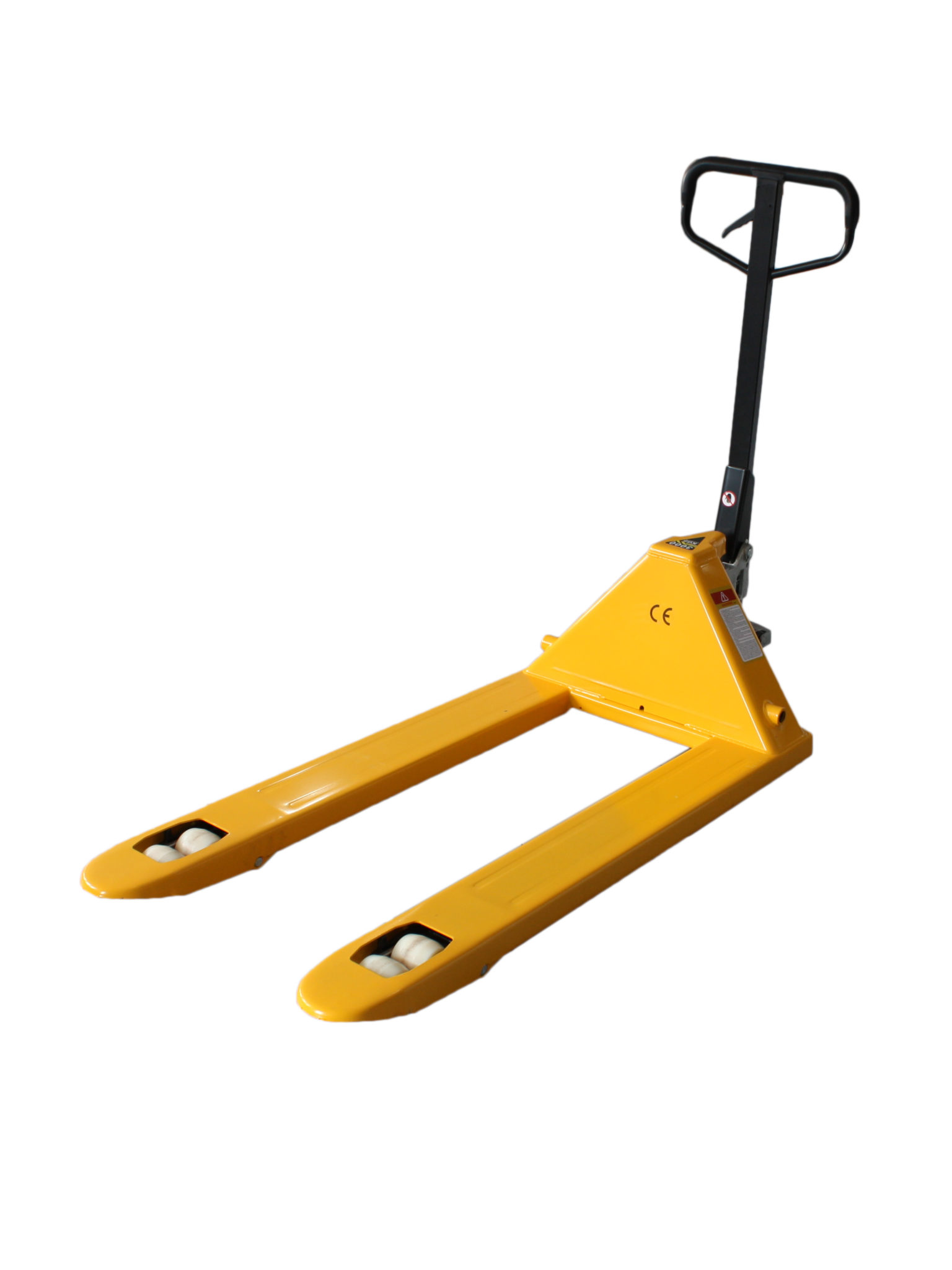

3 TON STANDARD PALLET JACK – PU WHEELS (FULL DESCRIPTION)
🏗️ General Definition
A 3-ton PU wheel pallet jack is:
- A hand-operated hydraulic lifting device
- Used to move standard pallets in warehouses and factories
- Rated for 3000 kg maximum load capacity
- Fitted with polyurethane wheels for improved performance
It is one of the most commonly used material handling tools in industrial logistics due to its strength and reliability.
⚙️ Construction & Key Components
🔹 Frame
- Heavy-duty steel construction
- Reinforced fork structure for high load stability
- Designed for continuous industrial use
🔹 Forks
- Standard length: ~1220 mm
- Fork width: ~550–685 mm (model dependent)
- Fits standard pallets used in warehousing
🔹 Hydraulic Pump System
- Manual pump handle lifts and lowers forks
- Smooth hydraulic control for:
- Lifting
- Neutral movement
- Lowering

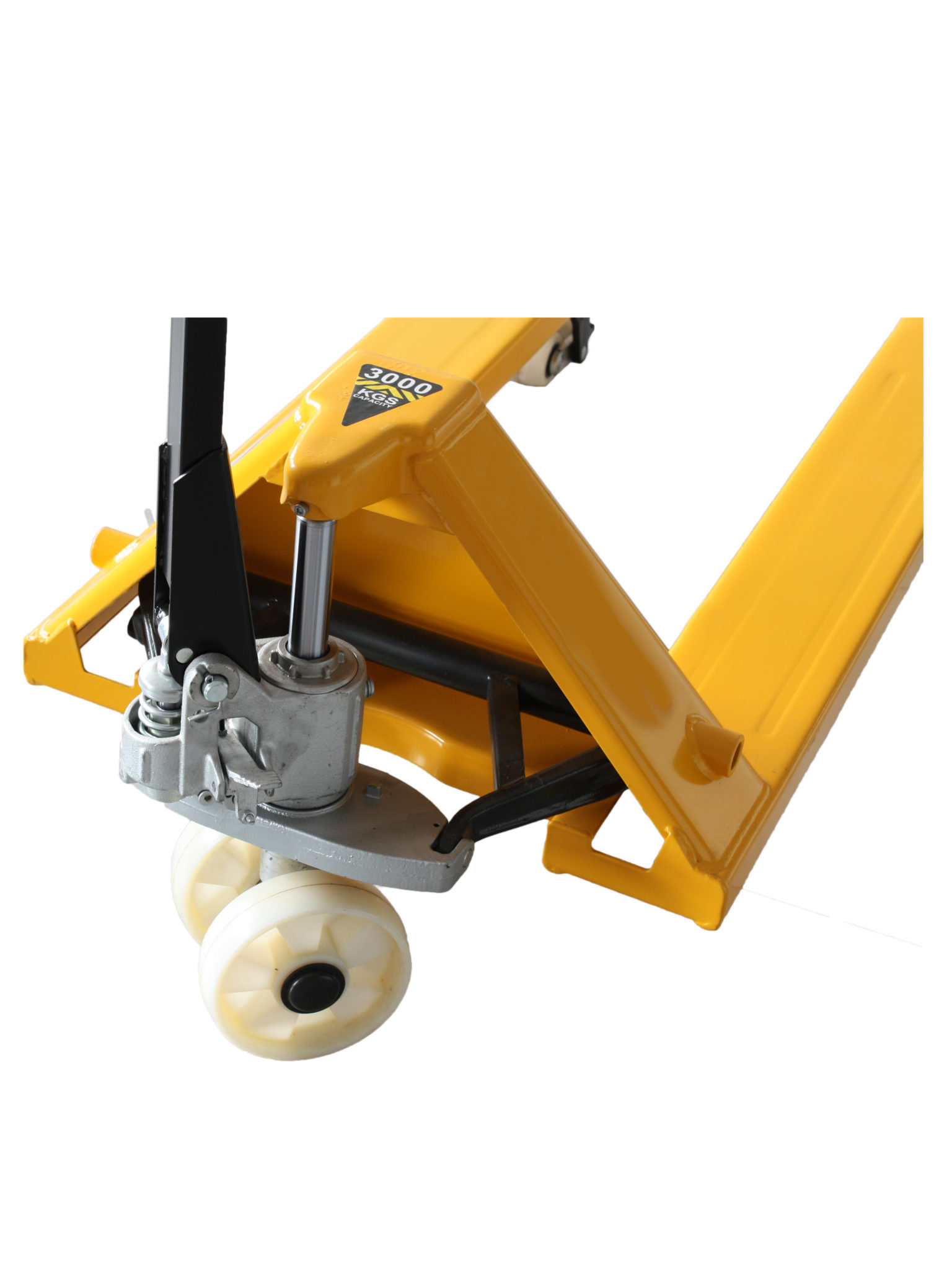

🔹 PU (Polyurethane) Wheels
- Made of steel core with polyurethane coating
- Includes:
- Steering wheels
- Double load rollers under forks
✔ Benefits of PU wheels:
- Smooth and quiet operation
- Better shock absorption than nylon
- Less floor damage
- Works on smooth + slightly rough surfaces
- Longer lifespan under heavy loads
⚙️ Technical Specifications (Typical)
| Feature | Specification |
|---|---|
| Load Capacity | 3000 kg (3 ton) |
| Fork Length | ~1220 mm |
| Fork Width | ~550–685 mm |
| Lift Height | ~190–200 mm |
| Lowered Height | ~85 mm |
| Wheel Type | Polyurethane (PU) |
| Operation | Manual hydraulic pump |
| Steering Angle | ~210° (varies by model) |
🛠️ How It Works
- Forks slide under pallet
- Handle is pumped to activate hydraulic system
- Load is lifted slightly off the ground
- Operator pushes or pulls the load
- Release lever lowers forks safely
🏭 Applications
Used in:
- Warehouses
- Distribution centers
- Manufacturing plants
- Retail stockrooms
- Logistics and shipping yards
It is ideal for short-distance movement of heavy palletised goods.
⚖️ PU Wheels vs Nylon Wheels (Key Difference)
| Feature | PU Wheels | Nylon Wheels |
|---|---|---|
| Smoothness | Very smooth | Smooth but harder |
| Noise | Quiet | Noisy on hard floors |
| Floor protection | Excellent | Moderate wear |
| Durability | High | Very high (hard surfaces) |
| Best use | Mixed flooring | Very smooth indoor floors |
✅ Advantages
- Handles up to 3000 kg safely
- Easier to push under heavy load (low rolling resistance)
- Protects floors from damage
- Suitable for mixed industrial surfaces
- Reliable and low maintenance
⚠️ Limitations
- Not suitable for rough outdoor terrain
- Requires flat surface for best performance
- Manual effort still needed for movement
- Cannot lift beyond pallet height (~200 mm)
🧠 Simple Summary
A 3 Ton Standard Hand Pallet Jack with PU wheels is a heavy-duty manual pallet mover designed for up to 3000 kg loads, offering smooth, quiet, and floor-friendly operation, making it ideal for modern warehouse environments.
