VINYL ESTER (Chemical Resistant at higher Temperatures) 38/38/38 Fibreglass 1220x2440 and 38/38/38 Fibreglass and 1220x3660

VINYL ESTER (Chemical Resistant at higher Temperatures) 38/38/38 Fibreglass 1220x2440 and 38/38/38 Fibreglass and 1220x3660 - Image 2

VINYL ESTER (Chemical Resistant at higher Temperatures) 38/38/38 Fibreglass 1220x2440 and 38/38/38 Fibreglass and 1220x3660 - Image 3

VINYL ESTER (Chemical Resistant at higher Temperatures) 38/38/38 Fibreglass 1220x2440 and 38/38/38 Fibreglass and 1220x3660 - Image 4

VINYL ESTER (Chemical Resistant at higher Temperatures) 38/38/38 Fibreglass 1220x2440 and 38/38/38 Fibreglass and 1220x3660 - Image 5

VINYL ESTER (Chemical Resistant at higher Temperatures) 38/38/38 Fibreglass 1220×2440 and 38/38/38 Fibreglass and 1220×3660

Price range: R6 497,27 through R8 668,01 Incl. vat

Summary Table

Feature	Specification
Panel Sizes	1220×2440 mm & 1220×3660 mm
Mesh Size	38×38 mm
Thickness	~38 mm (7 mm top / 5 mm bottom bars)
Open Area	~68%
Weight	~19.5 kg/m²
Resin Type	Vinyl Ester (VEFR)
Fire Rating	ASTM E‑84 Class 1, ≤ 25 (some ≤ 10)
Temperature Resistance	Up to ~110 °C
Color Options	Yellow, Orange, Red, or custom RAL
Surface Finish	Concave or Grit for anti-slip
Electrical Property	Non-conductive
Corrosion Resistance	Excellent for chemical, marine, industrial use
Installation	Easy cutting & fastening with common tools
Application Examples	Chemical plants, offshore platforms, walkways, industrial decks

Applications

Vinyl Ester FRP grating in the 38/38/38 format is perfect for:

Chemical processing and aggressive industrial environments
High-temperature zones where ISO resins might fail
Marine, wastewater, or offshore installations

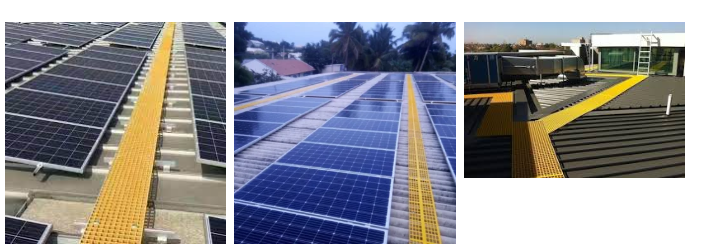

Safety-critical walkways needing visibility and anti-slip properties
Industrial platforms, stair treads, and trench covers in corrosive conditions

38/38/38 Fibreglass 1220x2440 /38/38/38 Fibreglass 1220x3660

Clear

SKU: 38/38/38 Fibreglass 1220x2440/ 38/38/38 Fibreglass 1220x3660 Category: FRP Grating

Description

Full Product Description – Website Copy

Product Variants

38/38/38 Vinyl Ester Fibreglass Grating – Panel Size: 1220×2440 mm
38/38/38 Vinyl Ester Fibreglass Grating – Panel Size: 1220×3660 mm

Specifications & Features

Panel Dimensions & Mesh

Available in 1220×2440 mm and 1220×3660 mm standard panel sizes.
Mesh size: 38 × 38 mm square grid, ensuring bidirectional strength .

Thickness & Construction

Total thickness around 38 mm, with bar thickness approximately 7 mm (top) / 5 mm (bottom) .
Open area around 68%, promoting excellent drainage and airflow.
Weight ~ 19.5 kg/m² for standard molded panel.

Resin & Performance

Made with Vinyl Ester (VE) resin, designed for enhanced chemical resistance and improved fire retardancy compared with polyester resins.
Rated for ASTM E‑84 Class 1 flame spread, often ≤ 25 (with specialized versions achieving ≤ 10).
Capable of withstanding up to 110 °C (230 °F) operating temperatures, making it suitable for high-temperature environment.

Surface & Color

Typically supplied in yellow, orange, red, or other custom RAL colors for visibility and safety.
Surface options include concave (meniscus) or grit finish for superior slip resistance .

Material Benefits

Non‑conductive, offering electrical safety.
Corrosion-resistant, ideal for harsh chemical, marine, or industrial environments.
Lightweight yet strong, easy to cut and install on-site using standard tools (circular saw, jigsaw).
Bi‑directional strength allows cutouts without loss of integrity
