Sale!

ISO (Chemical Resistant at lower Temperatures) 38/38/38 Fibreglass 1220×2440 38/38/38 and Fibreglass 1220×3660

Price range: R4 335,50 through R6 181,83 Incl. vat

Feature	1220×2440 mm – 38 mm	1220×3660 mm – 38 mm
Panel Size	1220×2440 mm	1220×3660 mm
Thickness & Mesh	38 mm / 38×38 mm	38 mm / 38×38 mm
Weight (approx.)	~19 kg/m²	~19.1 kg/m²
Open Area	~68%	~68%
Resin Options	ISO, Vinyl Ester, Phenolic	ISO, Orthophthalic, Vinyl Ester
Surface Options	Slip-resistant finishes	Slip-resistant finishes
Ideal Applications	Walkways, platforms, chemical use	Extended panels for large flooring areas, industrial use

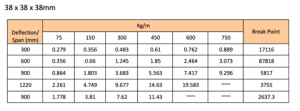

Datasheets & Load Tables: Contact suppliers like Gratex®, Fibretek, or similar for detailed load-span tables and resin certifications.
Customization: Many manufacturers offer custom sizes, color options (e.g., RAL choices), resin types, and surface finishes.
Technical Support: Local distributors (e.g., in South Africa) can assist with product selection, cutting services, installation clips (e.g., SS316), and UV-treated options

38/38/38 Fibreglass 1220x2440 38/38/38 Fibreglass /1220x3660

Clear

SKU: 38/38/38 Fibreglass 1220x2440 38/38/38/ Fibreglass 1220x3660 Category: FRP Grating

Description

Standard Panel Size: 1220 × 2440 mm
Thickness: 38 mm (mesh size 38 × 38 mm)
Resin Options:
- Isophthalic Polyester (ISO): Corrosion- and fire-resistant (flame spread ≤ 25)
- Also available in Vinyl Ester or Phenolic resins for enhanced chemical or fire resistance
Weight & Open Area:
- Approx. 19 kg/m2
- Open area ≈ 68%
Features:

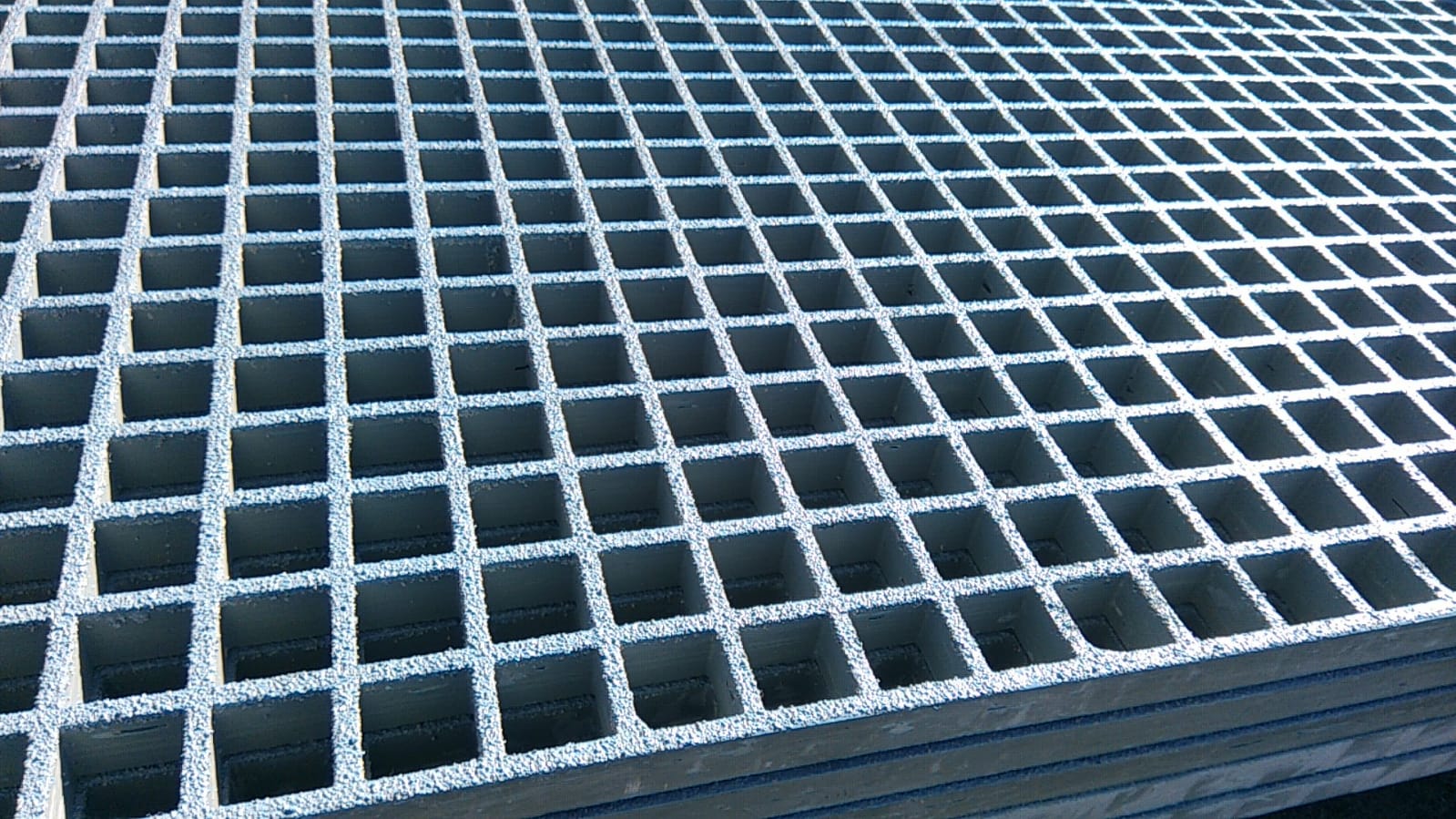

- Slip-resistant (concave or grit finish)
- Corrosion-, UV-, and fire-resistant
- Lightweight, non-conductive, low thermal conductivity
Ideal Uses:

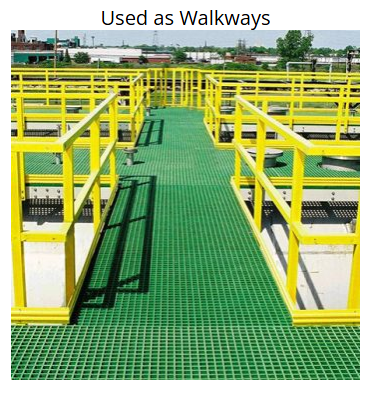

- Walkways, industrial platforms, chemical or offshore environments
- Benefits include simple installation and minimal maintenance

Standard Panel Size: 1220 × 3660 mm
Thickness: 38 mm with 38 × 38 mm mesh
Weight: ~19.1 kg/m²
Open Area: ~68%
Resin Options include: Isophthalic Polyester, Orthophthalic, Vinyl Ester

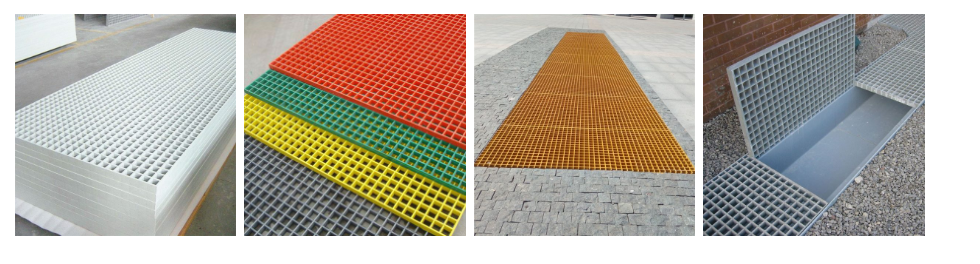

Surface Types: Concave, grit, or smooth — all slip-safe and customizable
Key Properties: Corrosion-resistant, fire-retardant (depending on resin type), non-conductive — tailored to harsh industrial or chemical settings

38/38/38 Fibreglass 1220x2440 38/38/38 Fibreglass /1220x3660	38/38/38 Fibreglass 1220×2440, 38/38/38 Fibreglass 1220×3660
