CABTYRE FLEXIBLE CABLES OR CORDS Per Meter and Per 100 Meter
CABTYRE FLEXIBLE CABLES OR CORDS Per Meter and Per 100 Meter - Image 2
CABTYRE FLEXIBLE CABLES OR CORDS Per Meter and Per 100 Meter - Image 3

CABTYRE FLEXIBLE CABLES OR CORDS Per Meter and Per 100 Meter

Price range: R5,13 through R2 888,00 Incl. vat

SKU: N/A Category: Brand:

Description

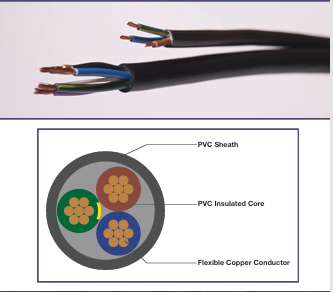

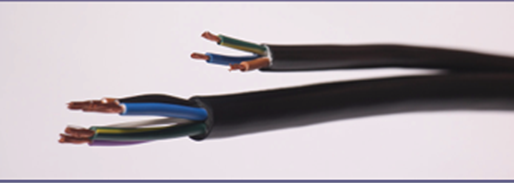

Construction
High conductivity bunched copper conductors, insulated and colour coded with a
general purpose flexible grade PVC. The cores are then twisted together for
maximum flexibility and sheathed with soft flexible grade PVC in a circular
configuration.
Applications
For supplying mains power to all types of domestic and industrial appliances and
equipment such as refrigerators, washing machines, glass cutters, hand tools,
polishers, kitchen appliances, woodworking equipment/machinery, hobby and
garden tools, extension leads, etc. The sheath is made of a flame retardant, water
and oil resistant flexible grade PVC.
Packaging

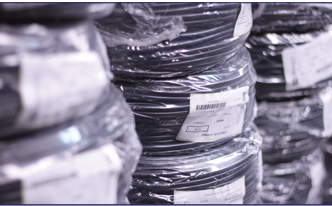

Available in 100 meter shrink-wrapped coils.
1000 meter drums available on request.

Specification
Voltage Rating
Test Voltage
Temperature Range
Flexibility Class
Conductor Type
Insulation Material
Sheath Material
Sheath Colors
Core Colors
As per table below
2000/3000 Volts-10° to +80°C
5
High conductivity annealed copper
General purpose flexible grade PVC
General purpose flexible grade PVC
Black and White
2 core – Blue, Brown
3 core – Blue, Brown, Green/Yellow
4 core – Blue, Brown, Black, Green/Yellow
5 core – Blue, Brown, Black, Green/Yellow, Violet
7 core – Blue, Brown, Black, Green/Yellow, Violet, Pink,
Orange
(SANS 157 – 2 / IEC 60227 – 5) (SANS 1574 – 2)





Additional information

Per Meter & Per 100 meter

CT0.50X2-p/Meter, CT0.50X3-p/Meter, CT0.50X4-p/Meter, CT0.75X2-p/Meter, CT0.75X3-p/Meter, CT0.75X4-p/Meter, CT0.75X5-p/Meter, CT0.75X7-p/Meter, CT1.00X2-p/Meter, CT1.00X3-p/Meter, CT1.00X4-p/Meter, CT1.00X5-p/Meter, CT1.00X7-p/Meter, CT1.50X2-p/Meter, CT1.50X3-p/Meter, CT1.50X3 DRUM-p/100 Meter, CT1.50X4-p/Meter, CT1.50X5-p/Meter, CT1.50X7-p/Meter, CT2.50X2-p/Meter, CT2.50X3-p/Meter, CT2.50X3 DRUM-p/100 Meter, CT2.50X4-p/Meter, CT2.50X5-p/Meter, CT2.50X7-p/Meter, CT4.00X2-p/Meter, CT4.00X3-p/Meter, CT4.00X4-p/Meter, CT4.00X5-p/Meter, CT4.00X7-p/Meter, CT6.00X4-p/Meter
