POWER & CONTROL cables ALV-K (RV-K) 3 & 4 CORE TRAILING CABLE Per Meter

Description

Construction

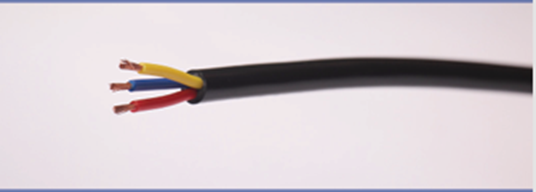

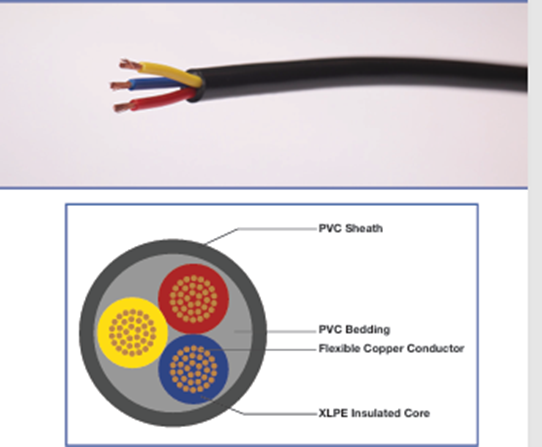

High conductivity bunched, flexible copper conductors, insulated and color coded
with XLPE. Insulated, twisted and filled with a PVC bedding to give the cable a round
finish. Final protection is with a tightly bonded, water, oil and abrasion resistant PVC.
Applications
The supply of power to all types of indoor and outdoor mobile and portable
machinery in all weather conditions and in wet and oily conditions. Used on
buildings, construction sites, in workshops, mines, dockyards, opencast mining,
railways, road works and factories.
Packaging

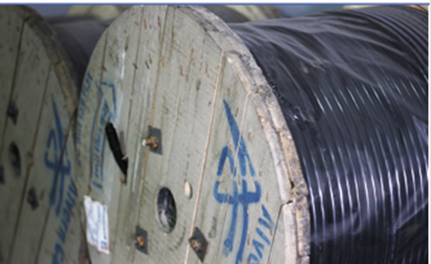

Available in 500 meter drum lengths.
Cut lengths also available on request.
This product is sequentially marked at one meter intervals for your convenience and
security.

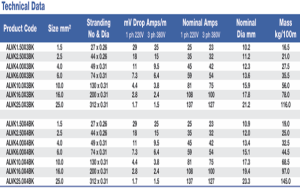

Technical Data
3 & 4 CORE TRAILING CABLE
Specification
Voltage Rating
Test Voltage
Temperature Range
Flexibility Class
Conductor Type
Insulation Material
Sheath Material
Sheath Color
Core Colors
450/750 Volts
3000 Volts-10° to +90°C
4 & 5
High conductivity annealed copper
XLPE
Flexible grade PVC
Black
3 core – Red, Yellow, Blue
4 core – Red, Yellow, Blue, Black
(SANS 1507 – 4)
