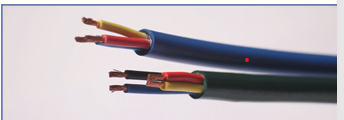

AQUAVERN 3 & 4 CORE SUBMERSIBLE PVC FLEXIBLE PUMP CABLE per meter

Description

Construction
High conductivity bunched flexible copper conductors, insulated and colour coded
with a general purpose waterproof flexible PVC. Insulated cores are twisted together
and filled with PVC to give the cable a round finish. Final protection is with a tightly
bonded waterproof, flexible PVC sheath.
Applications
PVC is superior to rubber in a waterproof submersible cable, therefore AQUAVERN
can be used for supplying power to all types of indoor and outdoor, mobile, portable
and fixed pumping equipment. AQUAVERN is used as a cost effective alternative to
rubber insulated cables for boreholes, drainage, dewatering, cleaning and irrigation
pumping equipment. AQUAVERN is used on farms and in mines, dockyards,
municipalities, construction operations, railways, roadworks and factories.
Packaging
Available in 500 metre drum lengths.
Cut lengths also available on request.
This product is sequentially marked at one meter intervals for your convenience and security.

Specification
Voltage Rating
Test Voltage
Temperature Range
Flexibility Class
Conductor Type
Insulation Material
Sheath Material
Sheath Colors
Core Colors
600/1000 Volts
3000 Volts-10° to +80°C
5
High conductivity annealed copper
Flexible grade waterproof PVC
Flexible grade waterproof PVC
Blue for 3-core products, Green for 4-core products
3 core – Red, Yellow, Blue
4 core – Red, Yellow, Blue, Black
(SABS 1574)
