Sale!

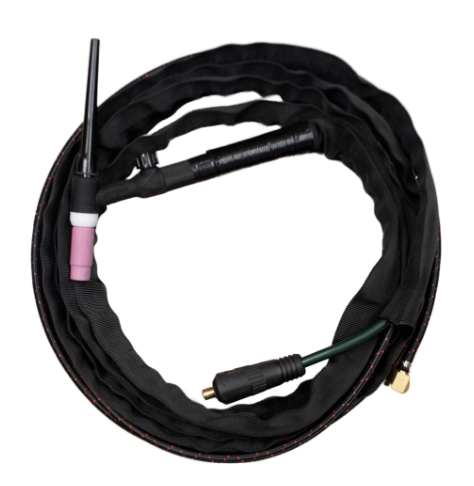

Tig Torches - WP-26 4M TIG Torch with switch - 2 Pc and WP-26 8M TIG Torch with switch - 2 Pc
Tig Torches - WP-26 4M TIG Torch with switch - 2 Pc and WP-26 8M TIG Torch with switch - 2 Pc - Image 2

Tig Torches – WP-26 4M TIG Torch with switch – 2 Pc and WP-26 8M TIG Torch with switch – 2 Pc

Price range: R1 344,01 through R1 928,55 Incl. vat

Technical Specifications (Typical / Representative)

Here are the approximate specs based on similar WP‑26 torches with switch + sheath:

Spec 4‑Meter Model 8‑Meter Model
Cooling Type Air‑cooled Air‑cooled
Rated Current (DC) ~ 200 A DC ~ 200 A DC
Rated Current (AC) ~ 150‑160 A AC ~ 150‑160 A AC
Duty Cycle ~ 35‑60% depending on model / manufacturer and cooling & cable quality Similar, possibly slightly lower if cable run causes voltage drop
Electrode Diameter ~ 0.5 – 4.0 mm ~ 0.5 – 4.0 mm
Cable / Hose Style 2‑piece assembly (power + gas) 2‑piece
Switch Type Handle trigger / push‑button Same
Connectivity / Fittings Standard industry fittings (check machine compatibility) Same

Applications & Use Cases

  • Fabrication & structural steel work where longer cable length (8m) helps reach large workpieces without repositioning the torch or machine

  • Workshops, maintenance, installation jobs where a switch on the handle is more convenient than using a foot‑pedal

  • Situations needing versatility: smaller jobs (using 4m) and larger assembly or site work (needing 8m)

  • Welding materials such as steel, stainless steel, copper, aluminum (depending on AC capability)

  • Environments with frequent torch movement, where the 2‑piece design helps reduce strain on connectors

What’s Included / Optional Components

  • Torch head with switch / trigger in handle

  • Power cable + gas hose (2‑piece) of chosen length (4m or 8m)

  • Sheath or protective cover (often included in versions described as “switched & sheathed”)

  • Standard consumables: collet, collet body, back cap, ceramic nozzle (check supplier for what’s included)

  • Connector types / plugs may vary: ensure matching plug with your welding machine (e.g. Dinse, BSP, threaded etc.)

SKU: WP-26 4M TIG Torch with switch - 2 Pc /WP-26 8M TIG Torch with switch - 2 Pc Category: Tags: , , , , , Brand: , , , , , , , , , , , , ,

Description

WP‑26 TIG Torches with Switch – 4M & 8M | 2‑Piece

Highly capable, air‑cooled WP‑26 TIG torches equipped with a handle switch (trigger) and supplied as 2‑piece cable/hose assemblies. Available in both 4‑meter and 8‑meter lengths for flexibility depending on workspace size. Designed for heavy duty TIG welding with reliable performance over long runs.

Key Features

Feature Description
Handle‑mounted Switch A momentary push‑button/trigger on the torch handle for starting/stopping the arc (and in some cases controlling gas), giving the welder direct control without foot pedal dependency.
Air‑Cooled System No water cooling required. Ideal for portability, lower maintenance, and straightforward use. Handles heat for rated output without needing extra cooling complexity.
2‑Piece Cable / Hose Assembly Separates the power cable and gas hose. This design improves durability (less strain on connections), allows easier replacement/repair of parts, and improves flexibility in cable setup.
Length Options • 4 meters – compact, less bulk, better for small areas or tight workspace
• 8 meters – extended reach for large fabrications or workpieces, more flexibility in position without moving machine.
High Amperage Rating These WP‑26 series torches typically support around 200 A DC and approximately 150‑160 A AC under good duty cycle conditions. (See “Technical Specs” below.)
Electrode Size Compatibility Accepts tungsten electrodes typically ranging from about 0.5 mm up to 4.0 mm, enabling both fine‑precision and medium/heavy welds.
Durable Build Heavy gauge power cable, robust switch and handle components, reliable connectors. Built to stand up to industrial/workshop environments.

Additional information

WP-26 4M TIG Torch with switch - 2 Pc /WP-26 8M TIG Torch with switch - 2 Pc

WP-26 4M TIG Torch with switch – 2 Pc, WP-26 8M TIG Torch with switch – 2 Pc
