Quickstage Tower - 8mH x 2.5mL x 2.5mW New Material - Painted Blue (complete scaffolding)

Quickstage Tower – 8mH x 2.5mL x 2.5mW New Material – Painted Blue (complete scaffolding)

Original price was: R35 680,00.Current price is: R33 505,18. Incl. vat

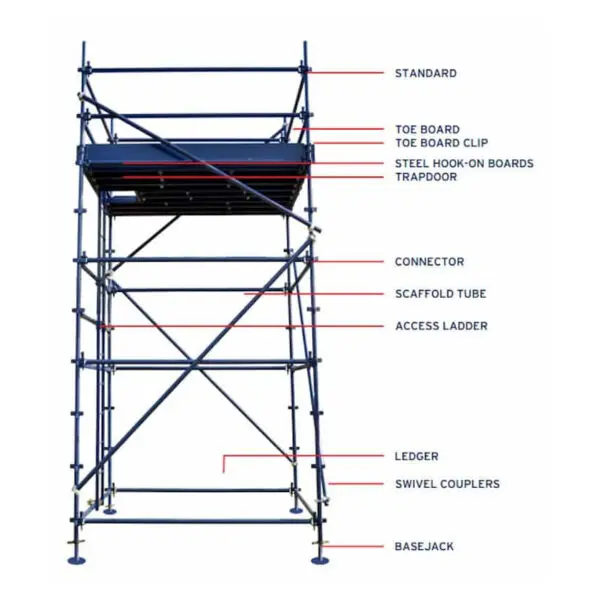

Fully complete Quick stage Steel scaffolding includes the following components:

101235 Sole Board Plastic x 4.00

101319 Base Jack Ø 38/610 Hollow x 4.00
101003 Standard 2000 x 16.00
101032 Ledger 1500 x 36.00
101079 Hook on Board 2500 x 8.00
101075 Hook on Board 2000 x 2.00
101102 Toe Board 2500 x 4.00
101094 Toe Board Clip QS x 4.00
101629 Connector x 12.00
101194 Trapdoor Clip Qs x 4.00
101770 Access Ladder 2000 x 4.00
101554 Backplate with Eyebolt M20 x 8.00
101552 Band Only 50×50 x 8.00
101268 Scaff Tube 48 x 2.65 x 3500 Painted x 8.00
101558 Swivel Coupler 50 x 50  x 16 units

Example Specification Summary

Spec Element Description
Height 8 m
Base Footprint Approximately 2.5 m × 2.5 m (using appropriate ledger and board spans)
Material High-tensile Q235/Q345 steel, painted blue
Decking Non-slip steel hook-on boards
Access Internal hook-on ladder (or optional staircase with trapdoor)
Bracing & Stability Standard diagonal bracing, base jacks for levelling
Safety Standards Compliant with SABS/BS; modular, fast assembly, high rigidity
Finish Durable blue paint or powder-coated surface for outdoor/long-term use
SKU: Quick Stage 8m Category: Tag:

Description

Quickstage Tower — 8 m H × 2.5 m L × 2.5 m W (Painted Blue) — Full Description (Example)

While I couldn’t locate an exact 8 m × 2.5 m × 2.5 m “new material, painted blue, complete” product page online, here’s a comprehensive, plausible product description based on standard Quickstage system specifications and custom-painted finishes:

Overview

A Quickstage (Kwikstage) modular scaffolding tower, 8 m in height with a platform bay approximately 2.5 m in both length and width—constructed from new high-strength steel and finished in durable, custom blue paint.

Components (Typical Configuration)

  • Standards (verticals): High-tensile steel, typically Q235 or Q345, with “V‑pressings” every 500 mm for wedge-lock ledger connections

  • Ledgers / Transoms: Q235 steel tubes (approx. 48 mm diameter, 3–4 mm wall thickness), painted, full compatibility across all levels

  • Steel Decking: Non-slip steel boards (e.g., 2.4 m, 1.8 m, or custom lengths), painted or galvanised

  • Diagonal Bracing: For structural rigidity, painted steel braces included

  • Access Components: Hook-on ladders or optional staircases, trapdoor platforms, and toe boards with clips for safety and access.

  • Base Jacks / Plates: For levelling and stability, especially useful on uneven ground.

  • Connectors and Couplers: Band & plate, DH couplers, swivel couplers, etc., for secure assembly

Performance & Safety Features

  • Modular & Scalable: Height and length are indefinitely extendable—8 m height achieved by stacking appropriate bays, and the bay footprint of 2.5 × 2.5 m is entirely achievable with standard ledgers and plans.

  • Rapid Assembly: Wedge-fixing ledgers allow fast, tool-free connection with no loose parts—ideal for quick erection and dismantling

  • Safety Compliant: Conforms to SANS (South African Standards) and BS 1139-3 standards; widely used for safe access up to and beyond 100 m

  • Painted Finish: Custom powder-coated or painted finish extends component life and provides aesthetic and corrosion-resistant properties

Additional information

Weight 896,36 kg
