Description

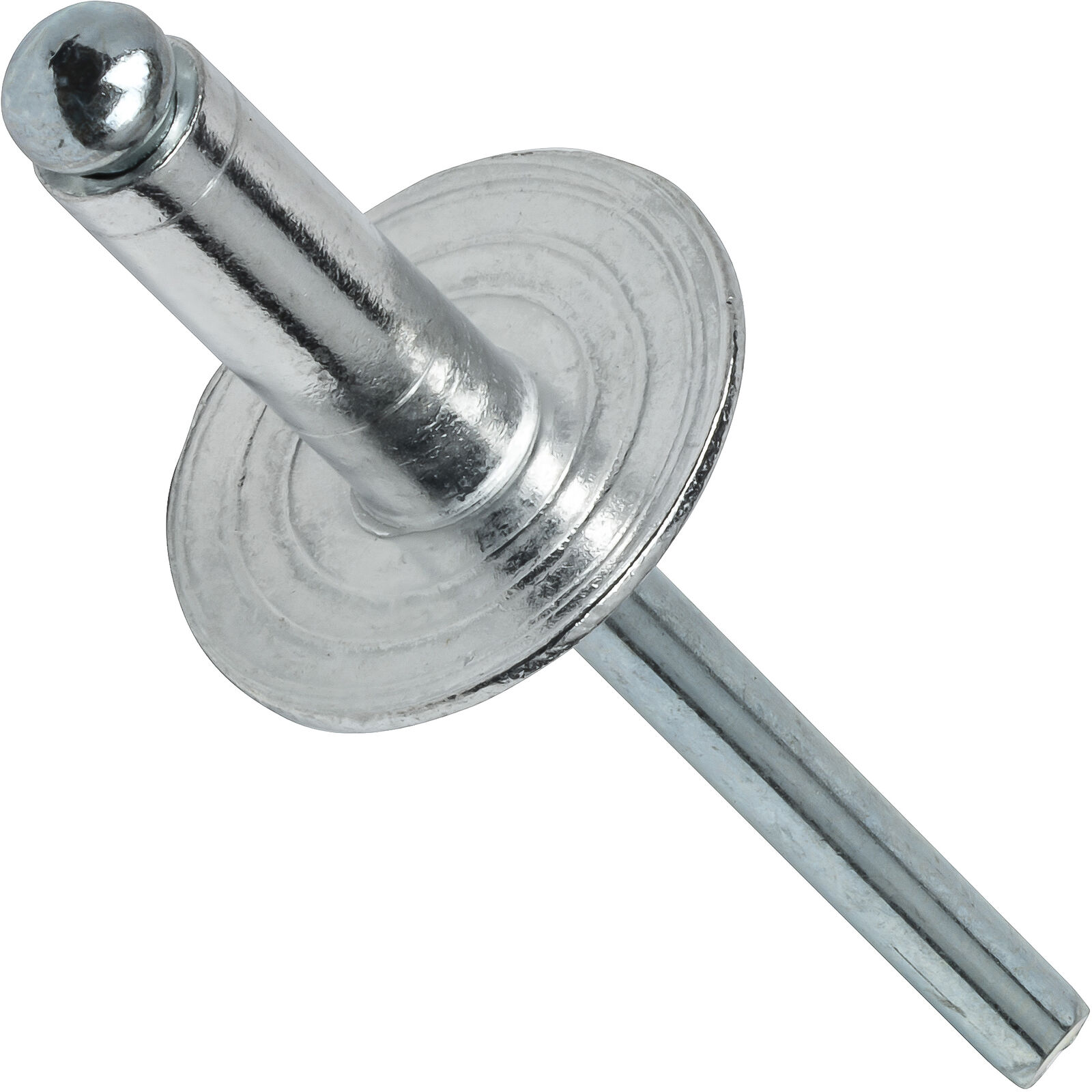

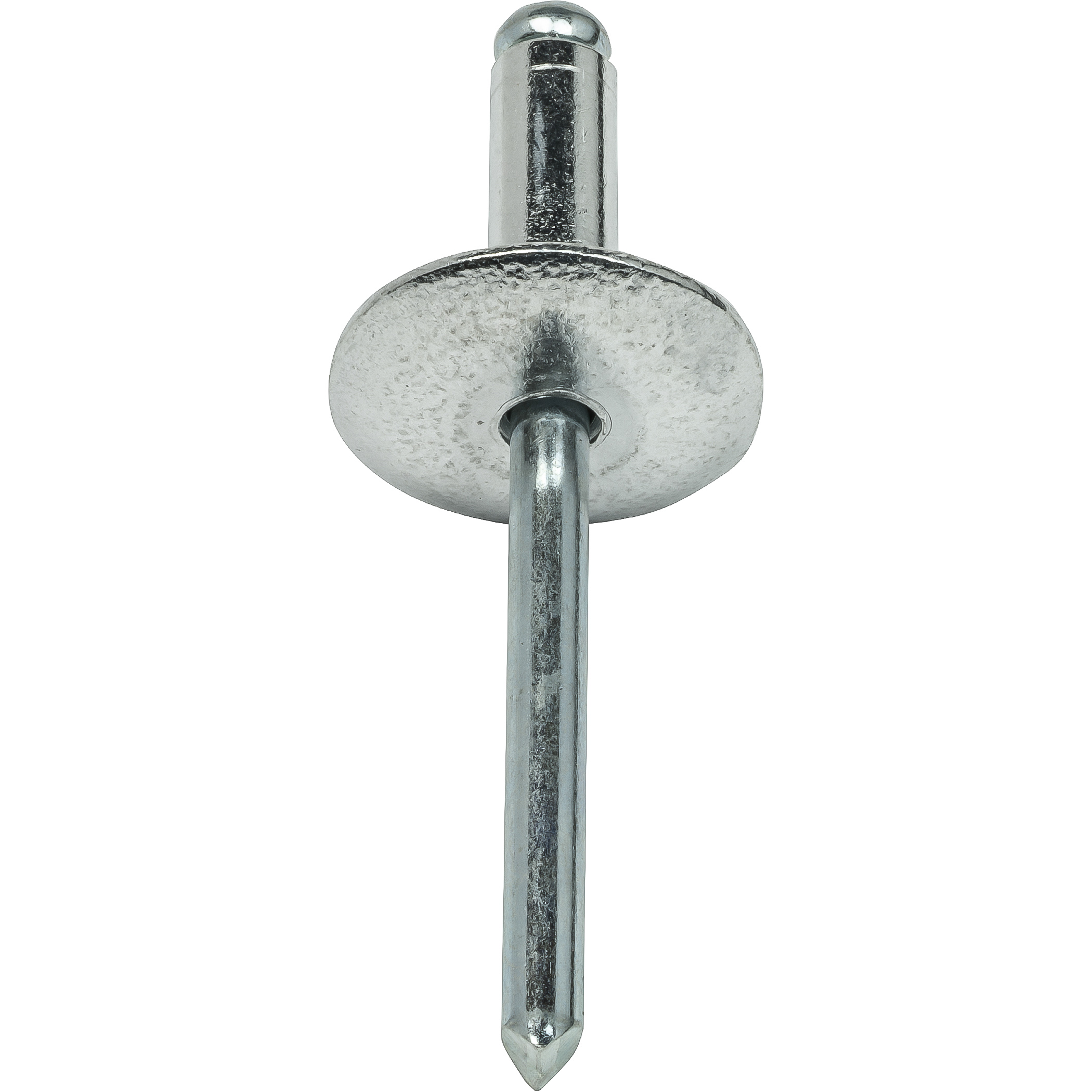

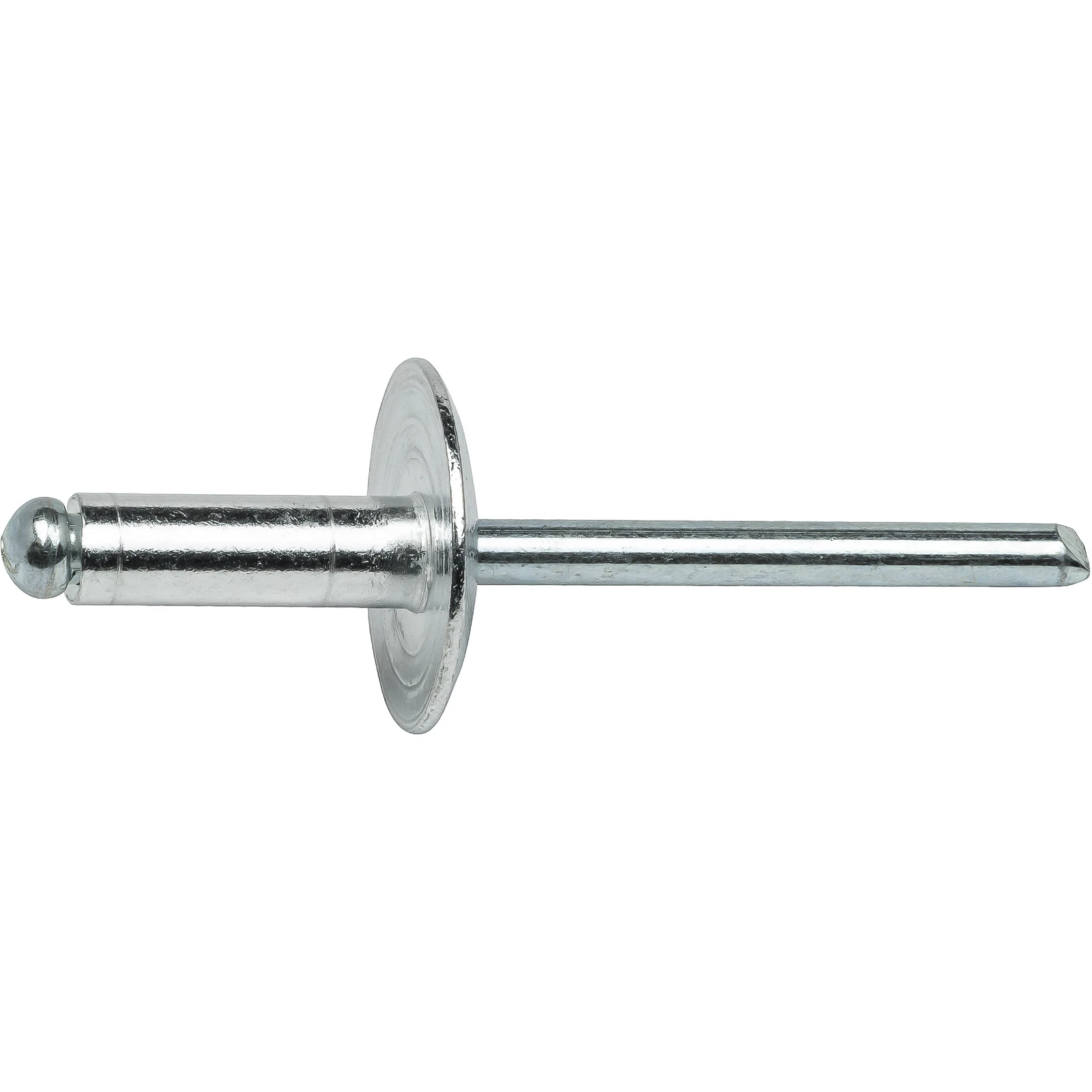

Large Flange Pop Rivets (ASL / ASLF Series: 3208–4830)
Material Composition:
-
Body: Aluminium
-
Mandrel: Zinc-plated steel
Designed for blind-side fastening with a widened flange for softer materials like plastics, wood, or fiberglass
Packaging:
-
Supplied in convenient packs of 100 rivets, ideal for projects or stock inventory.
Code Range & Dimensions:
Applicable sizes stretch from 3.2 mm diameter up to 4.8 mm diameter, and lengths up to 30 mm. Each code corresponds to a specific length and grip range:
📏 Size & Grip Specifications (based on ASL coding)
From AS‑3208 to AS‑3218 (3.2 mm diameter):
-
AS‑3208 (3.2×8 mm): grip ~2.5–5.5 mm
-
AS‑3210 (3.2×10 mm): ~4.5–7.5 mm
-
AS‑3212 (3.2×12 mm): ~6.5–9.5 mm
(Grip increases approximately 2–3 mm per increment)
From AS‑4xxx series (4.0 mm) and AS‑48xx series (4.8 mm):
-
4.0 mm sizes: AS‑4.0×10: grip ~4.0–7.0 mm; up to AS‑4.0×18: ~9.0–12.0 mm
-
4.8 mm sizes:
-
AS‑4810: ~3.5–6.5 mm
-
AS‑4812: ~5.5–8.5 mm
-
AS‑4815: ~8.5–11.5 mm
-
AS‑4818: ~11.5–14.5 mm
-
AS‑4821: ~14.5–17.5 mm
-
AS‑4824: ~17.5–20.5 mm
-
AS‑4827: ~20.5–23.5 mm
-
AS‑4830: ~23.5–26.5 mm
-
Hole Size Recommendations:
-
3.2 mm rivets → ~3.3 mm drill
-
4.0 mm rivets → ~4.1 mm drill
-
4.8 mm rivets → ~4.9 mm drill
