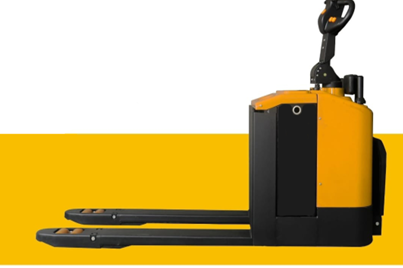

PJBAT15-68 – Battery Pallet Jack Walk Behind Unit – No Ride on Platform

Description

Example Full Product Description: PJBAT15‑68 Battery Pallet Jack — Walk‑Behind (No Ride‑On Platform)

Core Specifications

• Model: PJBAT15‑68

• Operation Type: Walk-behind battery-powered pallet jack — no ride-on platform (ideal for reduced footprint and maneuvering in tight spaces)

Performance & Load Capacity

• Maximum Load Capacity: 1,500 kg (1.5 ton) — standard for mid-capacity electric pallet jacks, consistent with models like EPT20‑15ET2 and Master Jack variants.

• Load Centre Distance: Approximately 600 mm — typical for similar units.

Lifting & Speed

• Lift Height: Around 115–200 mm depending on model — matches ranges from lead-acid and lithium battery jacks.

• Travel Speed: Approximately 3.5 km/h (laden) and 4–4.5 km/h (unladen) — based on similar models.

• Lift & Lower Speeds: Typical lift rates of ~0.03 m/s (laden) and ~0.045–0.060 m/s (unladen), with lowering speeds around 0.03 m/s for laden units

Power & Battery

• Battery Type: Likely 24 V lead-acid or lithium-ion. Comparable jacks use configurations such as 2× 12 V/65 Ah or single 24 V/52 Ah packs

Dimensions & Design

• Forks: Approximately 1,150 mm in length; widths typically adjustable between 560–685 mm

• Overall Size & Weight: These jacks generally weigh between 195 kg and 275 kg, with overall lengths near 1,600 mm, widths around 680 mm, and heights close to 1,200 mm

Drive & Lift Mechanism

• Drive Motor: Around 0.63 kW DC (drive) and 0.8 kW (lift) — consistent with similar walk-behind pallet trucks

• Controls & Safety Features:

  • DC speed control or stepless acceleration

  • Emergency reverse and braking mechanisms ideal for operator safety

Lead time 14 – 16 weeks
