Full Product Description – 1.5 Ton Electric Walk‑Behind Stacker – Fully electrical
Overview & Key Features
-

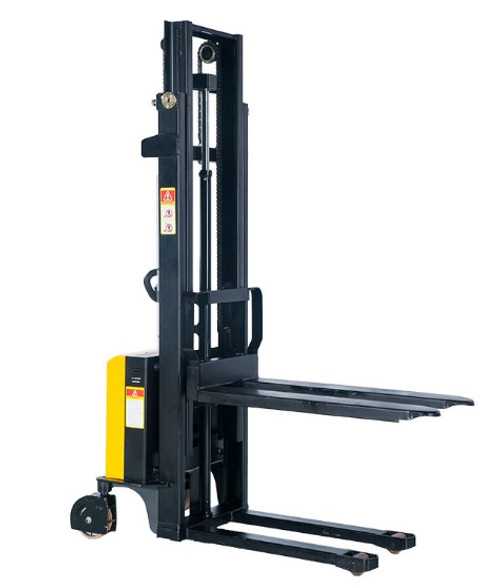

Model: 1.5T Walk‑Behind Full Electric Stacker (Wide Straddle)
-
Load Capacity: 1,500 kg (1.5 ton)
-
Lift Height: 3.3 m (3300 mm)
-
Ideal Uses: Cost-effective and durable for loading/offloading areas, warehouses, and production facilities
Specifications
| Feature | Details |
|---|---|
| Lift Height | 3,300 mm |
| Mast Extended Height | 3,800 mm |
| Lowered Fork Height | 90 mm |
| Overall Length | 1,770 mm |
| Overall Width | 820 mm |
| Fork Length | 1,150 mm |
| Fork Width | 160 mm (adjustable between 230–1,150 mm) |
| Travel Speed | Laden: 3.5 km/h |
| Lifting Speed | Laden: ~95 mm/s |
| Battery | 12V 75Ah × 2 units |
| Charging Time | 4–5 hours |
| Total Weight | ~1,168 kg |
| Construction | Powder‑coated finish; PU or nylon wheels; both foot and hand controls; battery-operated; adjustable forks; wide straddle base for stability |
Additional Highlights
-
Operational Ease: Electric up/down and push/pull controls make it user-friendly.
-
Durability: Solid build, suitable for intensive and repetitive operations.
-
Warranty: Comes with a 12‑month manufacturer’s default warranty
-
Charging Efficiency: Battery supports long usage and quick recharge for minimal downtime.
-
Space Efficiency: Compact design enables operation in tight warehouse aisles.
