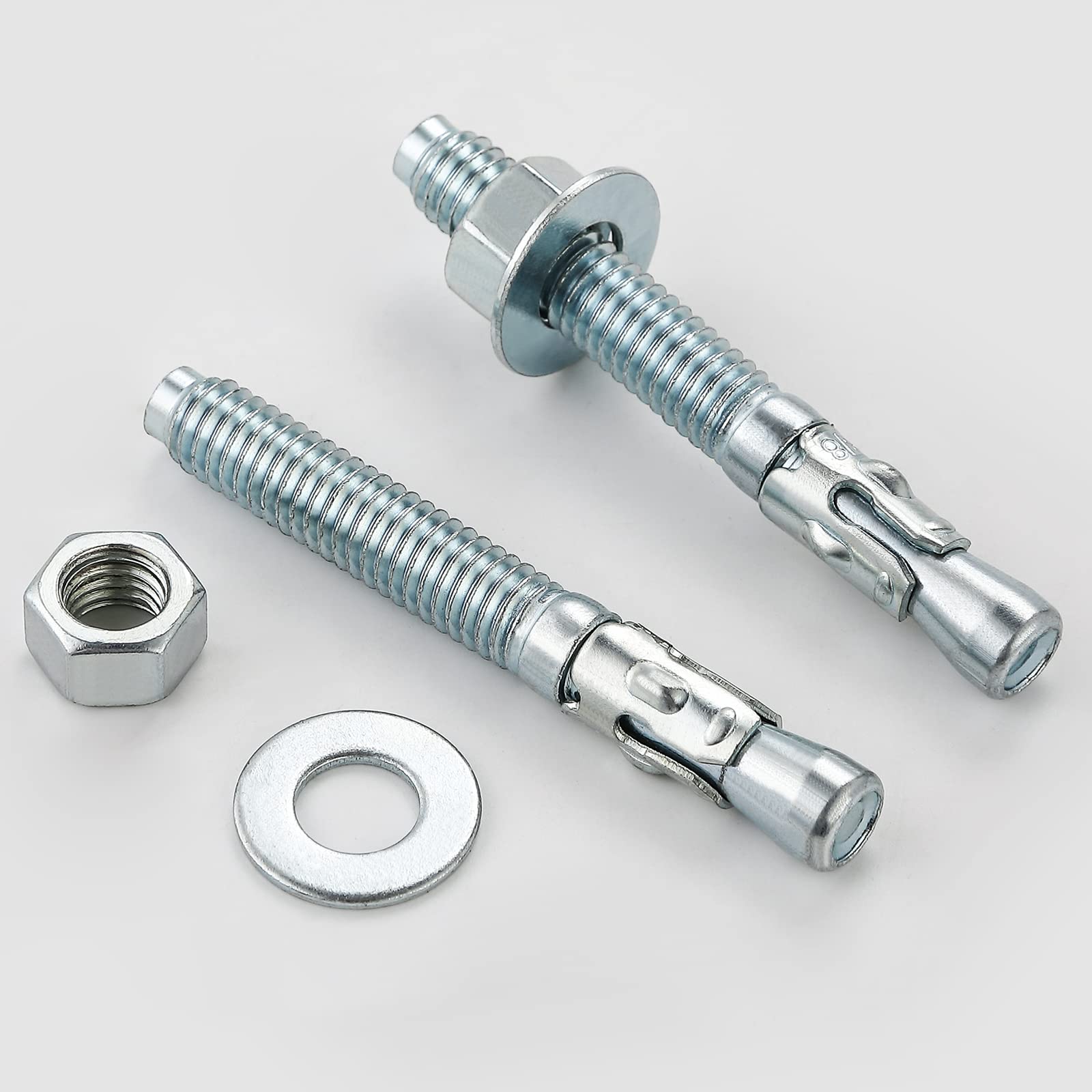

Building Fasteners Wedge Anchors 8 x 100 - 20 x 160 (Packs of 100)
Building Fasteners Wedge Anchors 8 x 100 - 20 x 160 (Packs of 100) - Image 2

Building Fasteners Wedge Anchors 8 x 100 – 20 x 160 (Packs of 100)

Price range: R686,55 through R5 727,00 Incl. vat

Product Specifications (Typical Range)

Feature Specification / Detail
Anchor Type Wedge anchor (one-piece expansion anchor)
Material / Finish Zinc-plated, hot-dipped galvanized, or stainless steel (304/316)
Available Sizes 8×100 mm through 20×160 mm
Pack Size 100 anchors per pack
Application Heavy-duty fixings in solid concrete (structural or static loads)
Ideal For Machinery mounts, steelwork, fixtures, signage, handrails

Installation & Application Notes

  • Wedge anchors must be used exclusively in solid, non-hollow concrete.

  • The hole diameter must match the anchor size, and minimum embedment depths must be respected to achieve optimal load-bearing capacity.

  • Proper spacing and edge clearances should be maintained to avoid stress interference or concrete breakout

  • Suitable for both indoor and outdoor applications, depending on the selected material and finish.

SKU: BFW - Anchors Category:

Description

Product Overview

Wedge Anchors are solid expansion fasteners engineered for secure, permanent anchoring in solid concrete. Comprised of a threaded bolt with an integral wedge clip, these anchors expand when the nut is tightened—offering superior load-bearing strength ideal for structural and heavy-duty installations.

Key Features & Benefits

  • Reliable Expansion Mechanism
    The anchor features a wedge that locks firmly into the concrete as the nut is tightened, ensuring consistent holding performance.

  • Robust Load Capacity
    Designed for heavy-duty applications—including structural supports, steel fixtures, machinery, and signage—wedge anchors deliver exceptional tensile and shear resistance.

  • Wide Material & Finish Options
    Available in zinc-plated carbon steel for indoor use, hot-dipped galvanized for moisture resistance, and stainless steels (304/316) for environments with high corrosion or exposure to chemicals.

  • Versatile Sizing
    Available in several diameters and lengths to match installation needs, including 8 × 100 mm up to 20 × 160 mm.

  • Simple Installation
    Install by drilling a hole matching the anchor diameter, inserting the anchor, and tightening the nut and washer—no setting tool required.

Additional information

BFW Anchors

8 x 100, 10 x 75, 10 x 90, 12 x 80, 12 x 110, 16 x 90, 16 x 110, 16 x 130, 20 x 110, 20 x 130, 10 x 160
