Unreinforced Saddle (without SS ring) '25 X 1/2 to '110 X 1½ SADDLE

Unreinforced Saddle (without SS ring) ’25 X 1/2 to ‘110 X 1½ SADDLE

Price range: R38,24 through R185,16 Incl. vat

Applications:

  • Agricultural irrigation systems

  • Rural and urban water distribution

  • Landscaping and sprinkler systems

  • Non-pressure drainage or venting systems

Advantages:

  • Economical solution for branch connections

  • Lightweight and easy to install

  • Corrosion-resistant and UV-stabilized

  • No welding or fusion required

SKU: N/A Categories: , Brand: ,

Description

Description:

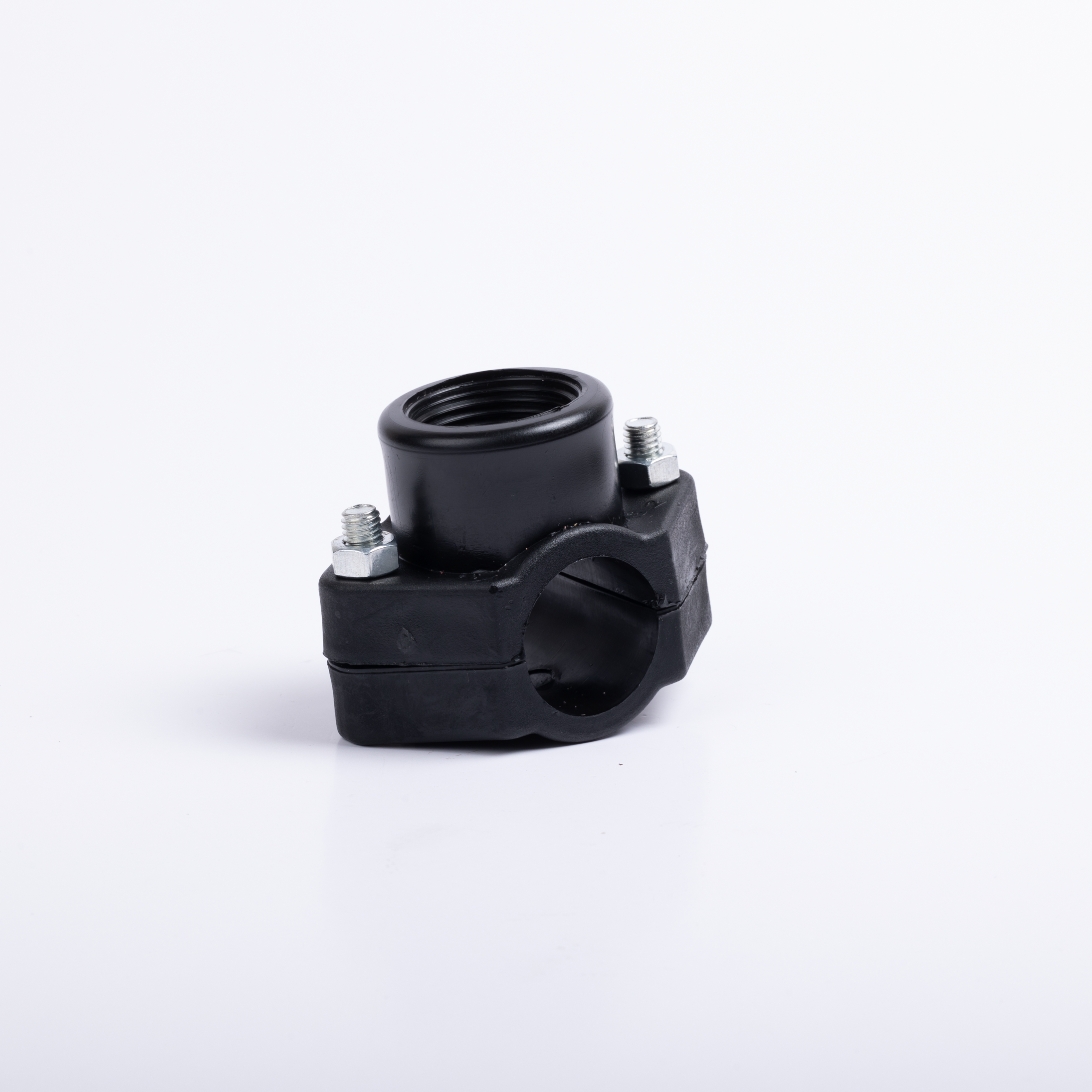

An Unreinforced Saddle is a polyethylene (PE) pipe fitting used for creating branch connections (taps) on main HDPE pipelines without the need for cutting or inserting a tee. These saddles are designed without a stainless steel reinforcing ring, making them ideal for low to medium pressure applications, particularly in irrigation, water supply, and drainage systems.

Product Features:

  • Material: High-Density Polyethylene (HDPE) – PE100 or PE80 grade.

  • Design: Single-body saddle with a tapping outlet.

  • Reinforcement: No stainless steel ring (unreinforced).

  • Size Range:

    • Main Pipe Diameter (d): From ’25 mm to ‘110 mm

    • Outlet/Tap Size (d1): From ½ inch to 1½ inch BSP or NPT

  • Pressure Rating: Typically up to PN 10 (10 bar) – may vary based on manufacturer.

  • Installation: Clamped around the main pipe using bolts; drilling is done at the outlet after installation.

  • Sealing: EPDM or NBR rubber gasket integrated for leak-proof tapping.

  • Compliance: Manufactured according to relevant standards such as ISO 4427, DIN 8074, or equivalent.

Additional information

JNT-US-25 1/2

25 X 1/2 SADDLE, 25 X 3/4 SADDLE, 32 X 1/2 SADDLE, 32 X 3/4 SADDLE, 32 X 1 SADDLE, 40 X 1/2 SADDLE, 40 X 3/4 SADDLE, 40 X 1 SADDLE, 50 X 1/2 SADDLE, 50 X 3/4 SADDLE, 50 X 1 SADDLE, 63 X 1/2 SADDLE, 63 X 3/4 SADDLES, 63 X 1 SADDLE, 63 X 1.1/4 SADDLE, 63 X 1.1/2 SADDLE, 75 X 1/2 SADDLE, 75 X 3/4 SADDLE, 75 X 1 SADDLE, 75 X 1.1/4 SADDLE, 75 X 1.1/2 SADDLE, 90 X 1/2 SADDLE, 90 X 3/4 SADDLE, 90 X 1 SADDLES, 90 X 1.1/4 SADDLE, 90 X 1.1/2 SADDLE, 110 X 1/2 SADDLE, 110 X 3/4 SADDLE, 110 X 1 SADDLE, 110 X 1.1/4 SADDLE, 110 X 1.1/2 SADDLE
