STAIRWELL TOWER Aluminum Scaffolding (length) = 1850mm x (width) 1500mm x 14500(height)

Description

TS14500 Aluminium Stairway Tower — 14.5 m Height (1850 × 1500 mm)

📦 Product Overview

• Base footprint: 1,850 mm (length) × 1,500 mm (width)

• Platform height (tower height): 14.5 m

Load & Stability

• Platform load capacity: 200 kg/m²

• Maximum safe working load per tower: 750 kg

• Stabilizers provided and required for heights above 4.5 m

🚀 Operational Highlights

• Built-in internal staircase for safe level-to-level access

• Full handrail protection around all platforms

• Lightweight aluminium construction for quick assembly

• Interlocking modular frame design—no tools required

• Mobile up to 14.5 m, static tied height up to 20.5 m

• Flat‑packed for shipping; typical delivery in 3–6 business days

📌 Compliance & Standards

• Conforms to SANS 51004‑1:2009 safety standards

• Features trapdoor platforms and secure brace hooking mechanisms

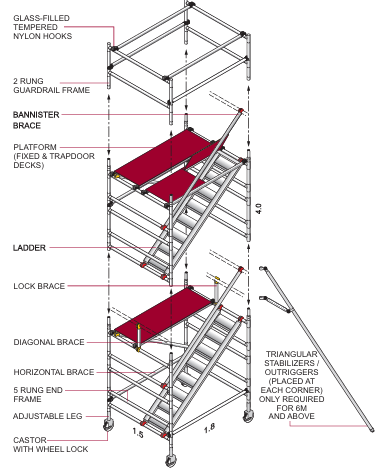

Included Components

• 14 building frames

• 2 guard‑rail frames

• 7 diagonal braces (yellow hook)

• 12 horizontal braces (black hook)

• 7 handrail braces (red hook)

• 7 ladders

• 1 trap‑door platform plus 7 plain platforms

• 4 height‑adjustable swivel castors (200 mm)

• 4 triangular stabilizers (required for > 4.5 m)

• Lock braces: L2 and S12

• Full toe‑board set

Lead time 3 – 6 working days
