STAIRWELL TOWER Aluminum Scaffolding (length) = 1850mm x (width) 1500mm x 12500(height)

Description

TS12500 Aluminium Stairway Tower — (1.85 m × 1.50 m × 12.5 m)

Base footprint: 1850 mm L × 1500 mm W
Total height: 12.5 m (approx. 60 ft)

Key Specifications:

• Material: Lightweight aluminium

• Platform type: One trapdoor platform and nine plain platforms totalling nine working level

Load Capacities:

• Permissible platform load: 200 kg/m²

• Max safe tower load: 750 kg

Operational Features:

• Internal staircases at each level for safe, easy access

• Full handrails around all platforms

• Interlocking aluminum frames that slot together—no tools needed

• Fast erection and dismantling; flat‑packed delivery

• Static tower can reach up to 20.5 m when tied to structure

Weight & Warranty:

• Total weight: ~523.9 kg

• Warranty: One-year limited product warranty

Delivery:

• Typical lead time: ~3–6 working days

• Excludes shipping costs; available for ordering online in South Africa

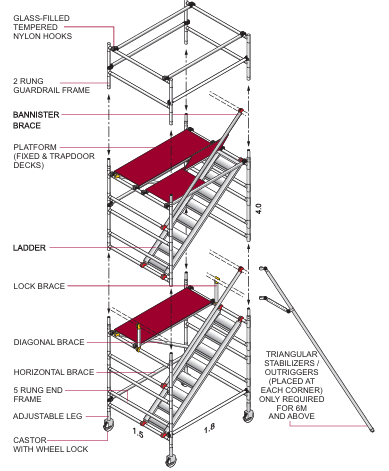

Includes the following:



• • • 12 x Stairwell Frames
    • 2 x Guard rail Frames
    • 11 x Horizontal Braces Black Hook
    • 6 x Diagonal Braces Yellow Hook
    • 6 x Bannister Braces Red Hooks
    • 6 x Ladder
    • 1 x Trapdoor Platform
    • 6 x Plain Platform
    • 4 x Adjustable Castors 266mm
    • 4 x Triangular Stabilizer
    • 2 x Lock Braces(L) 10 x (S)
    • 1 x Toe Board Set

Lead time 3 – 6 working days
