Original price was: R2 800,00.R2 643,64Current price is: R2 643,64. Incl. vat
Type: Single Solenoid, 5/2 Way
Port Size: 1/4″ BSP (British Standard Pipe) or NPT (check model)
Actuation Type: Electrically actuated (solenoid) with spring return
Working Pressure: 0.15 – 0.8 MPa (22 – 116 psi) (varies by manufacturer)
Operating Voltage: 12V DC, 24V DC, or 220V AC (select as required)
Coil Power: Typically 2.5W to 4.8W for DC; 4.5VA to 6VA for AC
Body Material: Aluminum alloy or brass (depends on model)
Sealing Material: NBR (Nitrile Rubber), FKM, or EPDM
Mounting Type: Base or body-mounted
Ambient Temperature: -5°C to +50°C
Medium: Filtered compressed air, dry and lubricated
Response Time: <30 ms (depends on pressure and voltage)

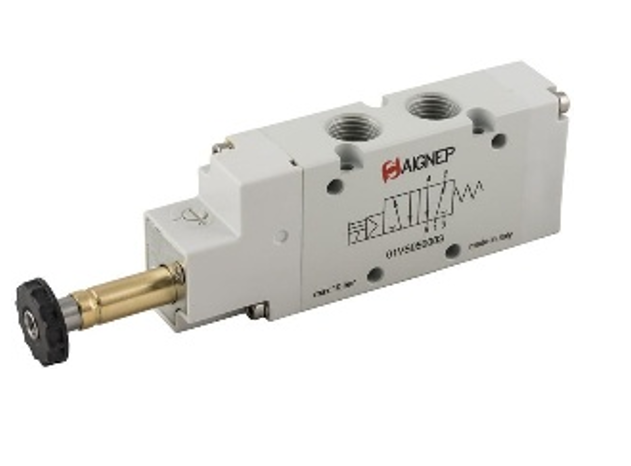

A 5/2 way single solenoid valve is an electromechanically operated valve designed to control the direction of airflow in a pneumatic system. This valve has five ports and two positions, operated by a single solenoid and a spring return mechanism.
It is most commonly used to control double-acting cylinders, where air needs to be directed to either side of the actuator depending on the required motion (extend/retract).
