Description

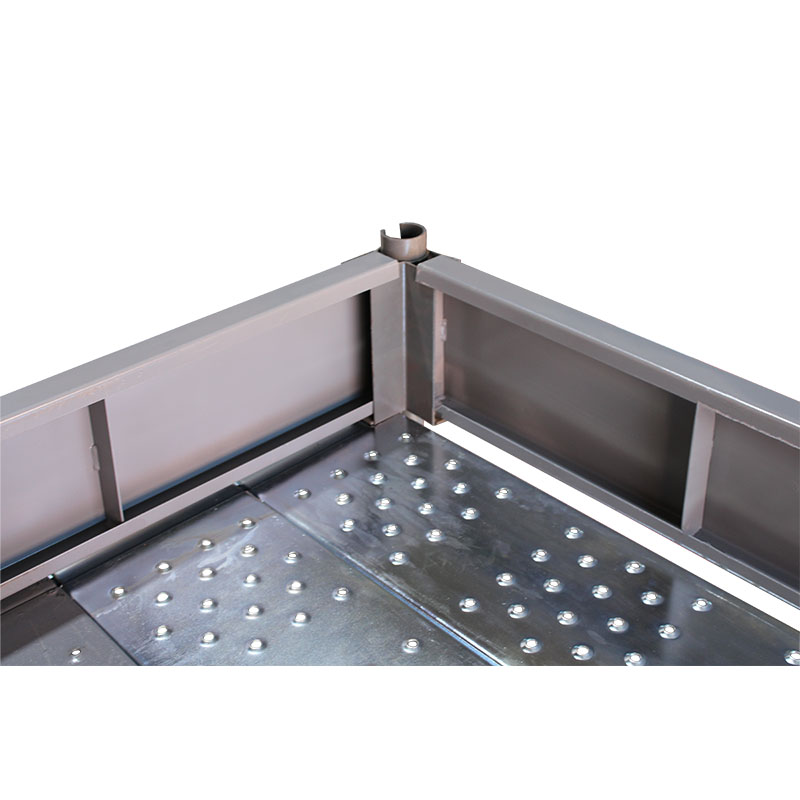

Scaffold Components – Toe-Board Set for Self-Lock Scaffold

The Toe-Board Set for Self-Lock Scaffold is an important safety component designed for compatible steel self-lock scaffolding systems. Toe boards are fitted around the edge of the scaffold working platform to help prevent loose tools, materials and other objects from falling from the platform.

Available in 1.5m, 2.1m and 3.0m sizes, these steel toe-board sets are designed to match the corresponding self-lock scaffold configurations. Each complete set includes 4 steel toe boards and 4 toe-board clips, providing the components required to install toe boards around a compatible scaffold platform.

Available Toe-Board Sets

TBS1.5 – 1.5m Toe-Board Set

The TBS1.5 is a steel toe-board set designed for compatible 1.5m self-lock scaffolding platforms. The toe boards help create a protective barrier around the edge of the working platform and help prevent loose objects from falling.

Product Code: TBS1.5
Length: 1.5m
Material: Steel
Dimensions: 1500mm (L) × 180mm (W) × 40mm (H)
Set Includes: 4 × 1.5m steel toe boards + 4 × toe-board clips
Approximate Set Weight: 7kg

TBS2.1 – 2.1m Toe-Board Set

The TBS2.1 is designed for compatible 2.1m self-lock scaffold platforms. The steel toe boards are positioned around the platform perimeter to help prevent loose objects from falling from the working area.

Product Code: TBS2.1
Length: 2.1m
Material: Steel
Dimensions: 2100mm (L) × 180mm (W) × 40mm (H)
Set Includes: 4 × 2.1m steel toe boards + 4 × toe-board clips
Approximate Set Weight: 9kg

TBS3.0 – 3.0m Toe-Board Set

The TBS3.0 is the largest toe-board set in this range and is designed for compatible 3.0m self-lock scaffold configurations.

Product Code: TBS3.0
Length: 3.0m
Material: Steel
Dimensions: 3000mm (L) × 210mm (W) × 40mm (H)
Set Includes: 4 × 3.0m steel toe boards + 4 × toe-board clips
Approximate Set Weight: 13kg

Key Features & Benefits

• Designed for compatible self-lock scaffolding systems
• Manufactured from steel
• Helps prevent loose tools, materials and objects from falling from scaffold platforms
• Complete set includes 4 steel toe boards and 4 toe-board clips
• Available in 1.5m, 2.1m and 3.0m configurations
• Designed for use around the edge of compatible scaffold platforms
• Suitable as an additional or replacement scaffolding component
• Suitable for construction, maintenance and industrial applications
• Available in three sizes to match different self-lock scaffold configurations

Toe boards form part of the optional components available for the steel self-lock scaffold tower range.

Why Use Scaffold Toe Boards?

When working on an elevated scaffold platform, tools, materials and other loose objects can potentially move towards the edge of the platform. Scaffold toe boards provide an additional protective barrier along the platform edge, helping reduce the risk of objects falling from the working area.

The toe boards should be correctly fitted around the scaffold platform using the supplied toe-board clips and in accordance with the manufacturer’s instructions.

Suitable Applications

The Toe-Board Sets are suitable for compatible self-lock scaffolding used for:

• Building construction
• General construction
• Building maintenance
• Painting and plastering
• Plumbing
• Electrical installations
• Industrial maintenance
• Renovation projects
• Commercial construction
• Elevated access applications

They are suitable for interior and exterior access trades, including plumbing, maintenance, plastering, painting, electrical work and column erection.

Select the Correct Toe-Board Set

Choosing the correct toe-board size is important for compatibility with your scaffold system.

TBS1.5 → 1.5m Self-Lock Scaffold

TBS2.1 → 2.1m Self-Lock Scaffold

TBS3.0 → 3.0m Self-Lock Scaffold

Before ordering, confirm the dimensions of your existing scaffold frame and platform to ensure the toe-board set is compatible.

Complete Your Self-Lock Scaffold System

Toe boards are one component of a complete self-lock scaffolding system. Other compatible components may include:

• Steel self-lock scaffold frames
• Cross braces
• Tie bars
• Steel decks
• Trapdoor platforms
• Trap doors
• Access ladders
• Base jacks
• Scaffold castors
• Knee braces
• Guard rails
• Other scaffolding accessories

The CASLAD steel self-lock scaffold tower configurations list Toe Board Sets as optional components for the 1.5m × 1.5m, 2.1m × 2.1m and 3.0m × 3.0m tower ranges.

Important Safety Information

Toe boards must be installed correctly as part of the complete scaffolding system and used in accordance with the manufacturer’s instructions and applicable workplace safety requirements.

Toe boards are intended to help prevent objects from falling from the platform; they should not be considered a substitute for required guard rails, handrails or other scaffold safety components.

The complete scaffold should be correctly assembled, braced and inspected by a suitably competent person before use.
