Description

Scaffold Components – Scaffolding Castors

The Scaffolding Castor Range is designed to provide smooth and practical mobility for compatible mobile and self-lock scaffold towers. Available in 150mm Nylon, 150mm Polyurethane (PU) and 200mm Polyurethane (PU) plate-mounted configurations, these castors are suitable for scaffolding applications where reliable movement and positioning are required.

The range includes the FG56NY/35/C 150mm Nylon Castor, FG56PU/35/C 150mm PU Castor and FG58PU/PLATE 200mm PU Plate Castor. Each model features a roller bearing and is designed for use with compatible scaffolding systems.

Available Scaffolding Castors

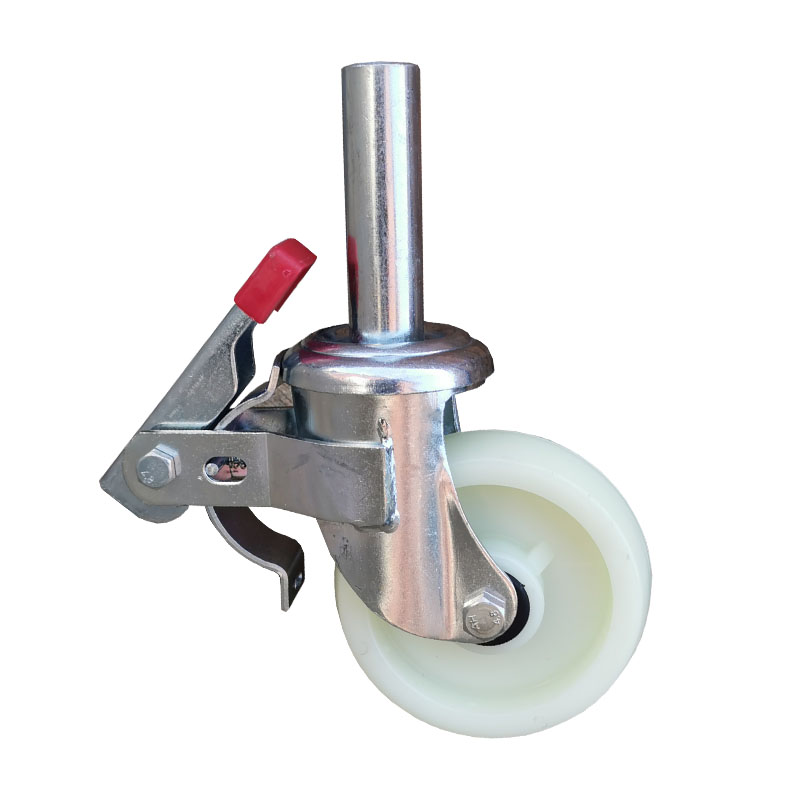

FG56NY/35/C – 150mm Nylon Castor

The FG56NY/35/C is a 150mm nylon-wheel scaffolding castor designed for compatible scaffold towers. The nylon wheel provides a durable and practical solution for moving scaffold structures across suitable surfaces.

Product Code: FG56NY/35/C
Wheel Diameter: 150mm
Wheel Width: 120mm
Mounting/Bore Specification: 35mm
Overall Height: 200mm
Bearing: Roller Bearing
Load Capacity: 300kg
Wheel Material: Nylon

The nylon castor is a suitable option where a robust, lightweight wheel is required for mobile scaffolding applications.

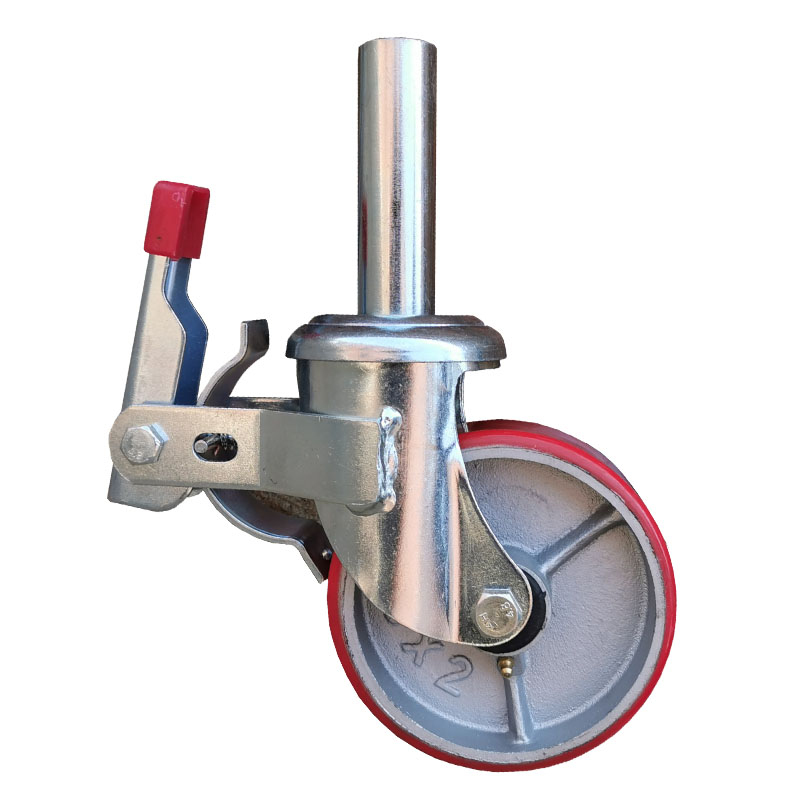

FG56PU/35/C – 150mm Polyurethane Castor

The FG56PU/35/C is a 150mm polyurethane-wheel scaffolding castor with a cast-iron rim and roller bearing. Polyurethane wheels provide a practical combination of durability and smooth movement for compatible scaffold towers.

Product Code: FG56PU/35/C
Wheel Diameter: 150mm
Wheel Width: 120mm
Mounting/Bore Specification: 35mm
Overall Height: 200mm
Bearing: Roller Bearing
Load Capacity: 350kg
Wheel Material: Polyurethane
Rim: Cast Iron

The PU castor offers a higher rated load capacity than the 150mm nylon version and is suitable for compatible mobile scaffolding applications where polyurethane wheels are preferred.

FG58PU/PLATE – 200mm Polyurethane Plate Castor

The FG58PU/PLATE is a larger 200mm polyurethane scaffolding castor featuring a plate mounting configuration. It is designed for compatible scaffold towers and provides a practical solution where a larger polyurethane wheel and plate mounting arrangement are required.

Product Code: FG58PU/PLATE
Wheel Diameter: 200mm
Wheel Width: 140mm
Mounting Plate Height: 110mm
Overall Height: 245mm
Bearing: Roller Bearing
Load Capacity: 400kg
Wheel Material: Polyurethane
Rim: Cast Iron

The 200mm PU plate castor is the highest-capacity option in this range and is suitable for compatible mobile scaffolding configurations requiring a plate-mounted castor.

Nylon vs Polyurethane Scaffold Castors

The FG56NY/35/C nylon castor provides a durable 150mm wheel option with a 300kg load capacity per castor.

The FG56PU/35/C polyurethane castor also has a 150mm wheel but increases the rated capacity to 350kg per castor. The polyurethane wheel is mounted on a cast-iron rim and uses a roller bearing.

For applications requiring the larger wheel and plate-mounted configuration, the FG58PU/PLATE 200mm polyurethane castor provides a 400kg load capacity per castor.

Suitable Applications

These scaffolding castors are suitable for compatible mobile scaffold systems used in:

• Building construction
• General maintenance
• Industrial maintenance
• Painting and plastering
• Electrical installations
• Plumbing work
• Renovation projects
• Commercial construction
• Industrial construction
• Mobile scaffold towers

Complete Your Self-Lock Scaffolding System

Scaffold castors are an important component when converting a compatible scaffold tower into a mobile configuration. Depending on the scaffold design, other components may include:

• Steel self-lock scaffold frames
• Cross braces
• Tie bars
• Steel decks
• Trapdoor platforms
• Access ladders
• Base jacks
• Knee braces
• Guard rails
• Toe boards
• Scaffold castors

When selecting replacement castors, always check the castor model, mounting arrangement, wheel size and compatibility with your existing scaffold system.

Important Safety Information

Scaffold castors must only be used with compatible scaffolding systems and installed according to the manufacturer’s instructions. The stated load capacities are per castor and should not automatically be treated as the allowable working load of the complete scaffold tower.

The complete scaffold structure, including frames, braces, platforms, castors and locking mechanisms, must be suitable for the intended application and inspected by a suitably competent person before use.

Where the scaffold is stationary and being used at height, ensure that the castor locking mechanism is correctly engaged and that the scaffold is used in accordance with applicable safety requirements.

Available Models

FG56NY/35/C – 150mm Nylon Scaffold Castor – 300kg Capacity

FG56PU/35/C – 150mm PU Scaffold Castor – 350kg Capacity

FG58PU/PLATE – 200mm PU Plate Scaffold Castor – 400kg Capacity

Choose the correct castor according to your scaffold system, mounting arrangement, wheel requirements and application.
