| Parameter | Details |
|---|---|
| Main Pipe Size Range | 50 mm to 200 mm (Outer Diameter) |
| Outlet Branch Size | 1¼” (32 mm) to 2″ (50 mm) Threaded or Compression |
| Material (Body) | High-density polyethylene (HDPE), Polypropylene (PP), or Ductile Iron (DI) |
| Reinforcement | Integrated metallic or polymer reinforcement for added strength |
| Gasket Material | EPDM or NBR (resistant to pressure and chemicals) |
| Fasteners | Galvanized steel, Stainless steel, or coated bolts and nuts |
| Operating Pressure | Up to 16 bar (232 psi) depending on size and material |
| Temperature Range | -10°C to +60°C (standard) – higher for special materials |
| Connection Type | Threaded outlet (BSP/NPT), Compression fitting, or Socket Weld |
| Compliance/Standards | ISO 4427, DIN, ASTM, or other regional standards |

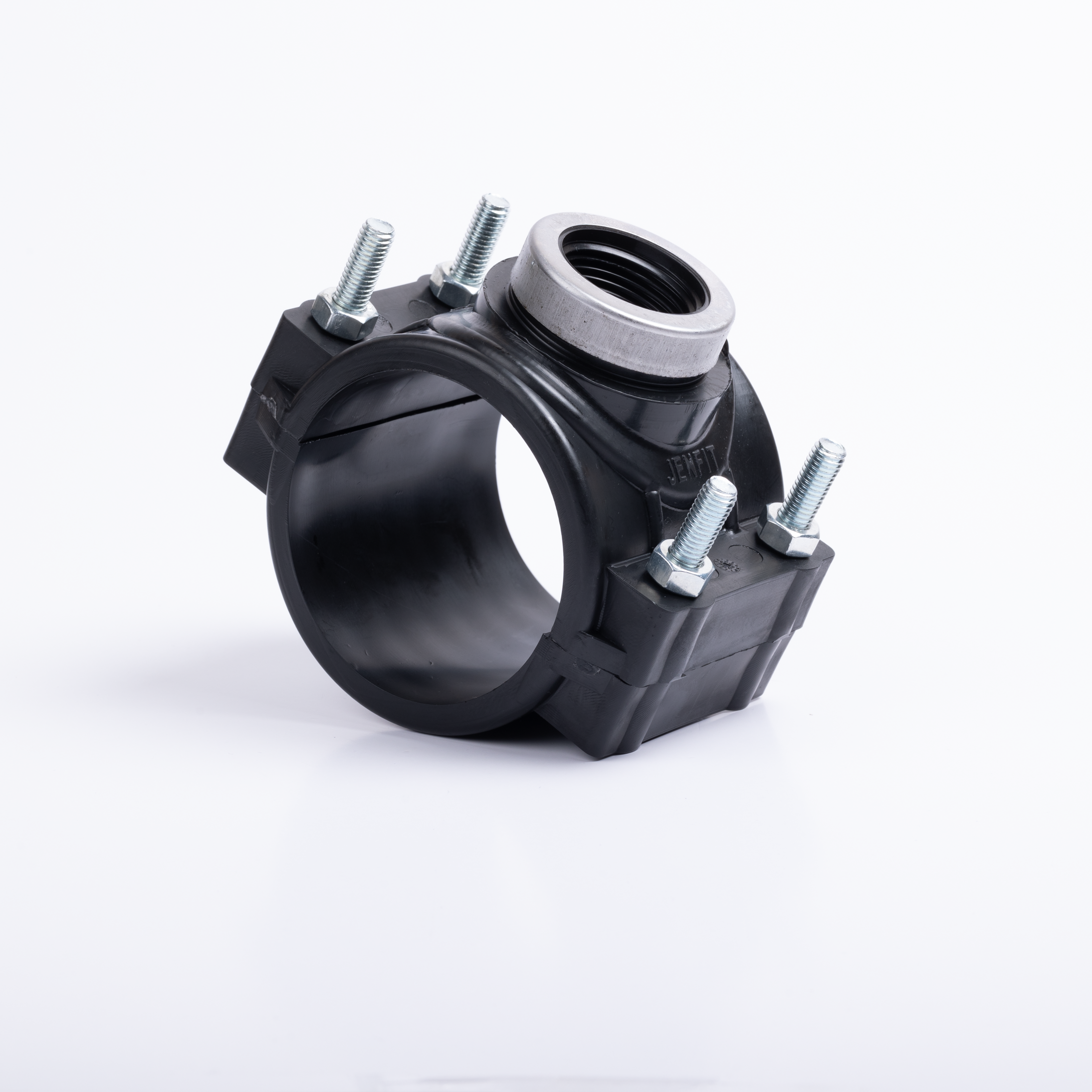

A Reinforced Saddle is a mechanical fitting designed for creating branch connections on existing pipelines without the need for cutting or welding. This saddle is reinforced to handle higher pressures and provide structural integrity to the pipe wall where tapping occurs.
Municipal water supply systems
Irrigation networks
Industrial pipelines
Wastewater systems
PE and PVC pipe connections
| JNT-RS-'50 X 1.1/4 | 50 X 1.1/4 SADDLE, 75 X 2 SADDLE, 90 X 2 SADDLE, 110 X 2 SADDLE, 160 X ¾ SADDLE, 160 X 1 SADDLE, 160 X 1.1/4SADDLE, 160 X 1.1/2 SADDLE, 160 X 2 SADDLE, 200 X 3/4 SADDLE, 200 X 1 SADDLE, 200 X 1,1/4 SADDLE, 200 X 1.1/2 SADDLE, 200 X 2 SADDLE |
|---|
