Sale!

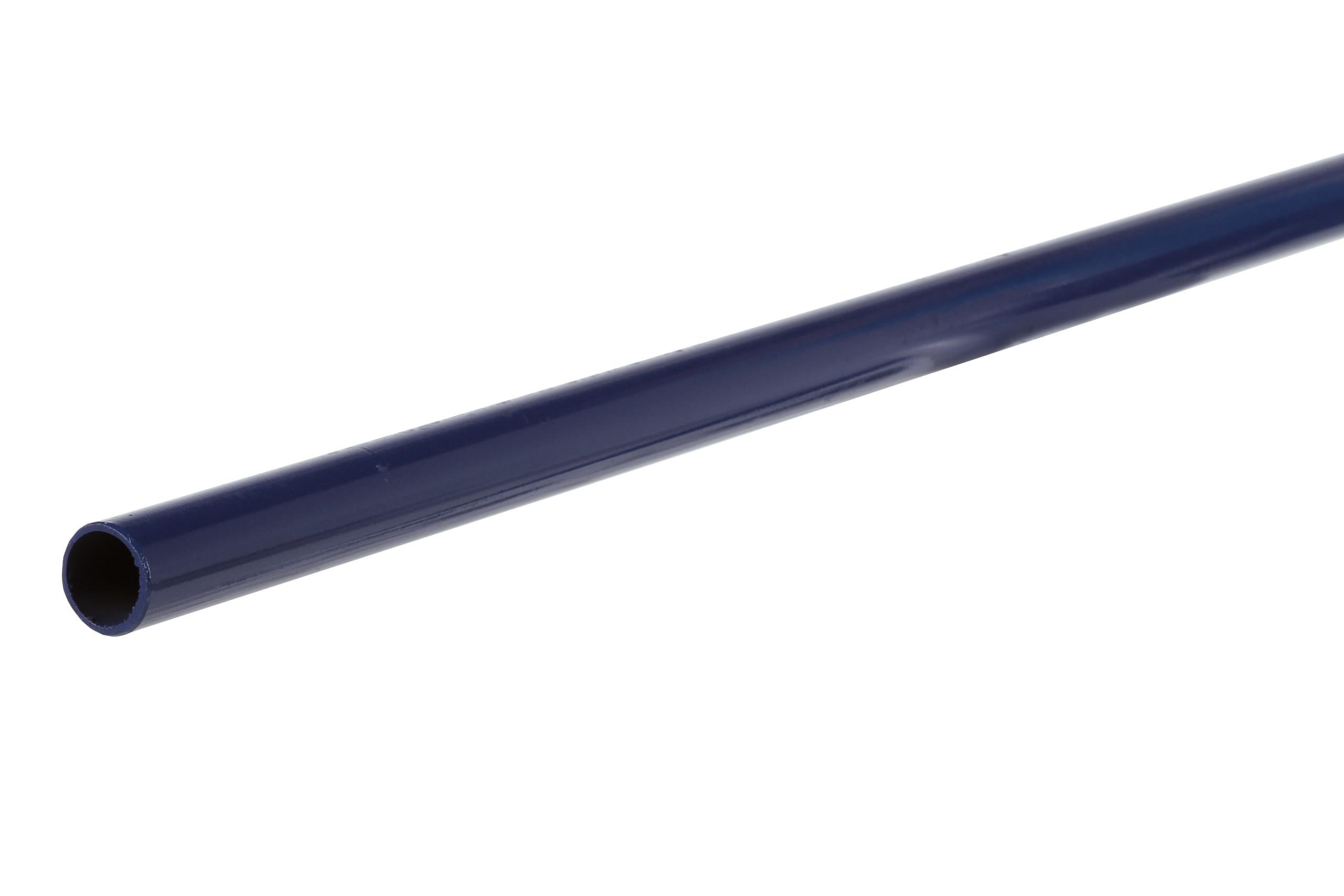

Quickstage Steel Scaffolding Tube 3500, 4000 and 6500 Painted

Price range: R319,62 through R543,28 Incl. vat

Summary Table

Component	Lengths (m)	OD×Thk (mm)	Steel	Finish
Standard Tube	3.5, 4.0, 6.5	48.3×3.0–4.0	Q235/Q355 (S235/S355)	Painted (custom colors), GD, HDG
Ledger/Transom etc.	Varied as above	48.3×3.0–4.0	Q235/Q355	Painted, HDG, Galvanized

📋 Description You Could Use on Your Website

“Painted Quickstage (Kwikstage) scaffolding tubes – including 3.5 m, 4.0 m and 6.5 m standards – are precision-manufactured with OD 48.3 mm steel pipe (3.0–4.0 mm wall), in high-strength Q235/Q355 (S235/S355). The surface is durable painted finish (custom color options), available also in galvanised or powder-coated versions. V-pressed clusters welded at nominal 500 mm spacing allow secure, wedge-lock modular connections without bolts or nuts. Components include matched ledgers, transoms, return transoms, diagonal braces, tie bars and platform brackets – all in the same steel spec and finish. Ideal for heavy-duty, flexible scaffolding systems meeting AS1576 / BS1139 standards, with SGS/ISO quality certification.”

SAS-02

Clear

SKU: SAS-02 Category: Steel Scaffolding

Description

Product Specifications (Painted Steel Tubes)

Vertical / Standard Tubes

Length options: 3.5 m, 4.0 m, 6.5 m
Diameter: 48.3 mm OD
Wall thickness: 3.0–4.0 mm
Finish: Painted (also available in hot-dip/electro-galvanized or powder coating)
Feature: “V” pressings welded at ~495–500 mm intervals for ledger/transom connection

Ledger / Horizontal Tubes

Lengths: 0.5 m, 0.8 m, 1.0 m, 1.2 m, 1.8 m, 2.4 m, 3.0 m
Same diameter/thickness as standards
Steel grade & finish options: Q235/Q355, painted or galvanized, custom lengths available

Transoms

Lengths: 0.5 m, 0.8 m, 1.0 m, 1.2 m, 1.8 m, 2.4 m, 3.0 m
Same steel specs and finishes

Other Components

Return transoms, bracing/diagonals, tie bars, platform brackets, etc., follow the same material (painted Q235/Q355, 48.3 mm OD) and are customizable in length

✅ Features & Advantages

Modular design: Easy assembly via wedge‑lock V-clusters – no loose fittings like nuts or bolts
Heavy-duty & stable: Designed for high load and versatile use across industrial, commercial, and domestic projects
Durable finish: Painted coating protects against corrosion; more cost-effective compared to galvanized finish
Compliance: Meets standards like AS1576, BS1139 with SGS/ISO certification

Additional information

SAS-02	3500, 4000, 6000
