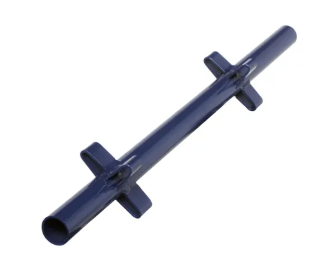

Description
Key Specifications & Features
Sizes, Material & Finish
-
Tube dimensions: Outer diameter Ø48.3 mm; typical wall thickness 3.0‑4.0 mm. Sizes range from 500 mm, 1 000 mm, 1 500 mm, 2 000 mm, 2 500 mm, 3 000 mm, 3 500 mm to 4 000 mm
-
Steel grades: Typically, Q235–Q355 or S235–S355, providing high tensile strength
-
Finish: Hot dip galvanized, powder-coated, or painted to resist rust and corrosions
Assembly & Locking
-
Equipped with V‑lug (wedge lock) systems spaced ~495–500 mm apart, enabling quick, tool‑free assembly and solid rigidity
Compliance & Safety
-
Manufactured to international standards such as BS1139, EN74, AS/NZS 1576, AS/NZS 1577; often certified CE/SGS
-
Designed for heavy‑duty applications and modular adaptability across various construction projects
Example Weights
A general weight guide per unit length (values from Nord/Well-made):
-
0.5 m standard: ~2.0–3.5 kg
-
1.0 m standard: ~4.8–6.2 kg
-
1.5 m: ~7.2–8.5 kg
-
2.0 m: ~9.5–11.7 kg
-
2.5 m: ~12–14.4 kg
-
3.0 m: ~14.5–17.2 kg
-
3.5 m: ~17–20 kg
-
4.0 m: ~20–23 kg
