Quickstage Steel Scaffolding No. 0 Prop 1067 - 1829, No. 4 Prop 3200 - 4876 and No. 5 Prop 3660 - 6100
Quickstage Steel Scaffolding No. 0 Prop 1067 - 1829, No. 4 Prop 3200 - 4876 and No. 5 Prop 3660 - 6100 - Image 2

Quickstage Steel Scaffolding No. 0 Prop 1067 – 1829, No. 4 Prop 3200 – 4876 and No. 5 Prop 3660 – 6100

Price range: R852,81 through R1 495,71 Incl. vat

Typical Component Breakdown (per system)

Component Size Material Finish
Standard (Vertical) 0.5 – 4 m (1067–1829 mm included) Q235/Q345, Ø 48.3 × 3–4 mm Painted / HD galvanized
Ledger 0.5 – 3.0 m Q235 Ø 48.3 × 3.2 mm Painted / HD galvanized
Transom 0.5 – 2.4 m / 50×50×5 mm Q235 Painted / HD galvanized
Diagonal Brace 1.7 – 3.6 m Q235 Ø 48.3 × 3.2 mm Painted / HD galvanized
Tie Bar 0.5 – 2.4 m Q235 40×40×4 mm Painted / HD galvanized
Steel Board 0.54 – 3.07 m (230×63 mm) Q235 plate Painted / HD galvanised

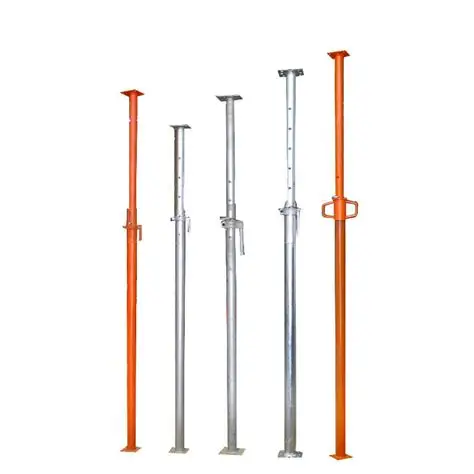

🧰 Prop No. 0 (1067–1829 mm)

This extension of the standard line typically includes the No. 0 prop in lengths between 1.067 m and 1.829 m, used as adjustable vertical supports or jacks—constructed from Q235 steel, with interchangeable fittings at standard spacing (500–600 mm). The hot-dip galvanized finish gives resilience in outdoor settings.

✅ Summary

The Quickstage Steel Scaffolding No. 0 Prop (1067–1829) is a robust, versatile, and efficient modular scaffold system that balances:

  • Strength (high load capacity),

  • Speed (quick-fit assembly),

  • Durability (galvanized/painted steel),

  • Compliance (international safety certifications).

It aligns closely with AS/NZS 1576 standards, ensuring reliable performance across construction, industrial, and infrastructure contexts.

SKU: Prop 1067 - 1829/ Prop 3200 - 4876/ Prop 3660 - 6100 Category:

Description

Product Overview

  • System Type: Modular Kwikstage (“Quickstage”) steel scaffolding known for speedy assembly/disassembly via interlocking wedge-press fittings—no loose nuts or bolts.

  • Usage: Ideal for external elevated work—bricklaying, rendering, carpentry, cladding, installation of guardrails, facia/gutter works.

  • Standards: Commonly designed to comply with AS/NZS 1576, BS 1139, EN 74, ISO 9001, ISO 14001, ISO 18001, SGS

📐 Key Specifications

  • Material: High-strength carbon steel—typically Q235 or Q345.

  • Tube Size: Approximately Ø 48.3 mm; wall thickness ranges between 3.2 mm to 4 mm, depending on component.

  • Lengths: Available in multiple sizes:

    • Standards: 0.5 m, 1.0 m, 1.5 m, 2.0 m etc. (approx. 16″, 32″, 48″, up to 4 m).

    • Ledgers/Transoms/Braces/Tie-bars: Sizes correspond with standards (e.g., ledgers at 0.5–3.0 m, braces at 1.7–3.6 m).

    • Prop (No. 0, 1067–1829) range covers 1.067 m to 1.829 m; suitable as adjustable props or vertical tubing.

  • Finish: Painted or hot-dip galvanized; powder-coating optional for customization.

🏗️ Features & Advantages

  • Load Capacity: Each standard can support significant vertical load (up to ~10 000 kg depending on length/configuration).

  • Fast Assembly: Wedge-lock connect allows four bracing members to engage with one press, accelerating erection.

  • Durability & Safety:

    • Corrosion-resistant (galvanized) for outdoor and harsh environments.

    • Meets WorkSafe / site safety regulations through robust guardrails, toe-board fittings.

    • No loose fasteners reduces tampering/failure risk

  • Versatility: Modular configuration suitable for varied building geometries, contours, tunnels, event staging.

  • Cost Efficiency: Reusable, long-service design (~10–15 years with proper maintenance), low upkeep costs aj

Additional information

SAS-02

0 Prop 1067 – 1829, 4 Prop 3200 – 4876, 5 Prop 3660 – 6100
