Description
Product Overview

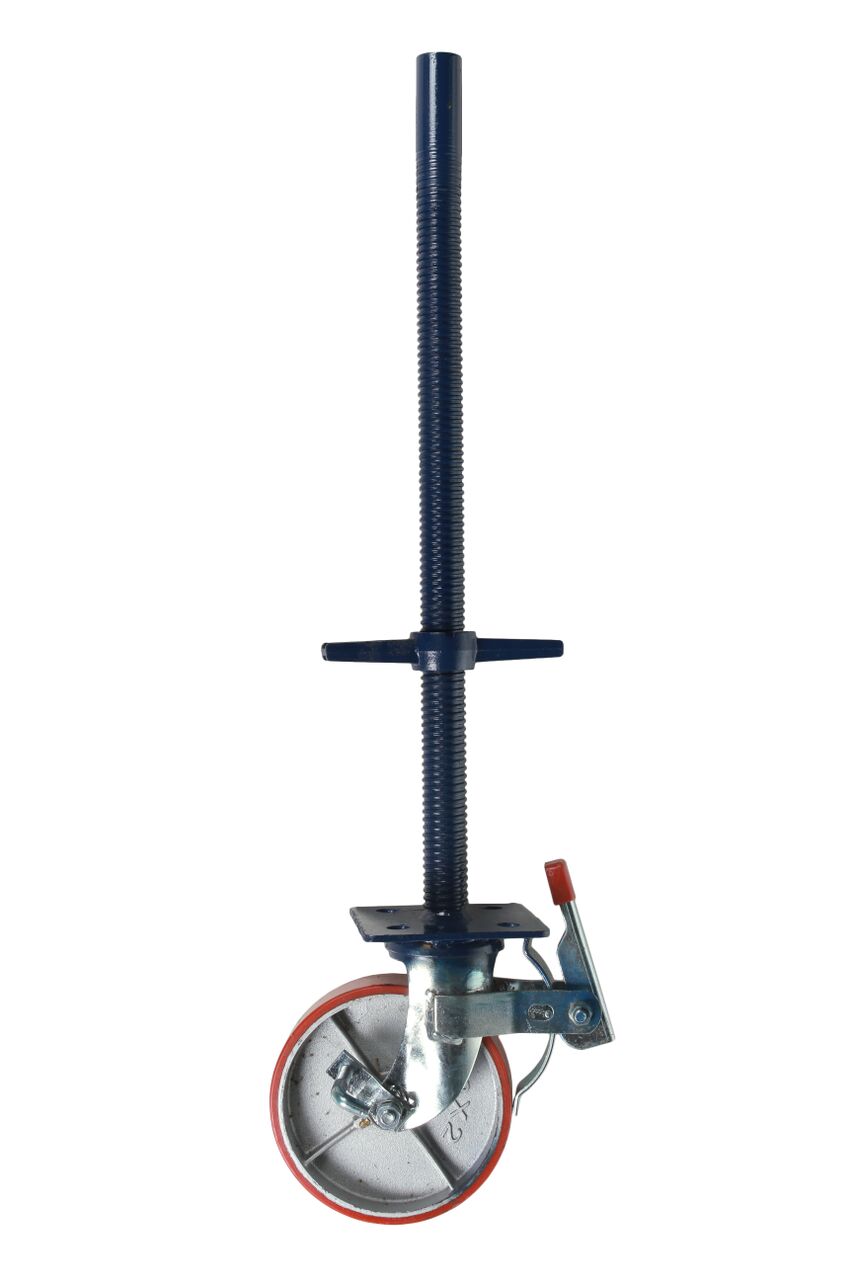

A scaffold jack with a castor-style wheel, serving as an adjustable base leg (jacking) for mobile Kwikstage scaffolds. It features a 200 × 50 mm roller and a 38 mm stem/spigot, with integrated leveling and locking.
⚙️ Key Specifications
-
Wheel Diameter: 200 mm × 50 mm roller
-
Stem Size: Ø 38 mm (standard scaffold tube diameter)
-
Jack Tube Length: 500 mm overall length of stainless tube
-
Load Capacity Options:
-
150 × 50 mm roller: ~600 kg
-
200 × 50 mm roller: ~700 kg
-
200 × 50 mm polymide/nylon roller (harder): 1000 kg capacity
-
-
Material:
-
Stem & screw jack: Galvanized steel (resistant to weather)
-
Wheel: Polymide (nylon) for high durability (1000 kg model); lighter rollers may use nylon or polyurethane
-
-
Wheel Bearings: Ball-bearing swivel and plain hub bearing
🔒 Features & Benefits
-
Height Adjustment: Standard 500 mm jack allows fine leveling via screw adjustment and built-in locking nut on threaded rod
-
Mobility & Stability: Swivel wheel enables movement; locking nut keeps wheel/stem secured at set height
-
High Load Performance: The polyamide-wheeled version can support up to 1000 kg, while smaller wheel versions support 600–700 kg
-
Compliance: Designed according to EN 1004 standards for mobile scaffolds
📌 Typical Use Cases
-
Movable scaffold towers: Combine with swivel wheels to create height-adjustable rolling bases
-
Uneven surfaces: Screw adjustment accommodates slopes or irregular terrain
-
High-load environments: Ideal for heavy-duty use with 1000 kg capacity castor
