Description
Full Product Description

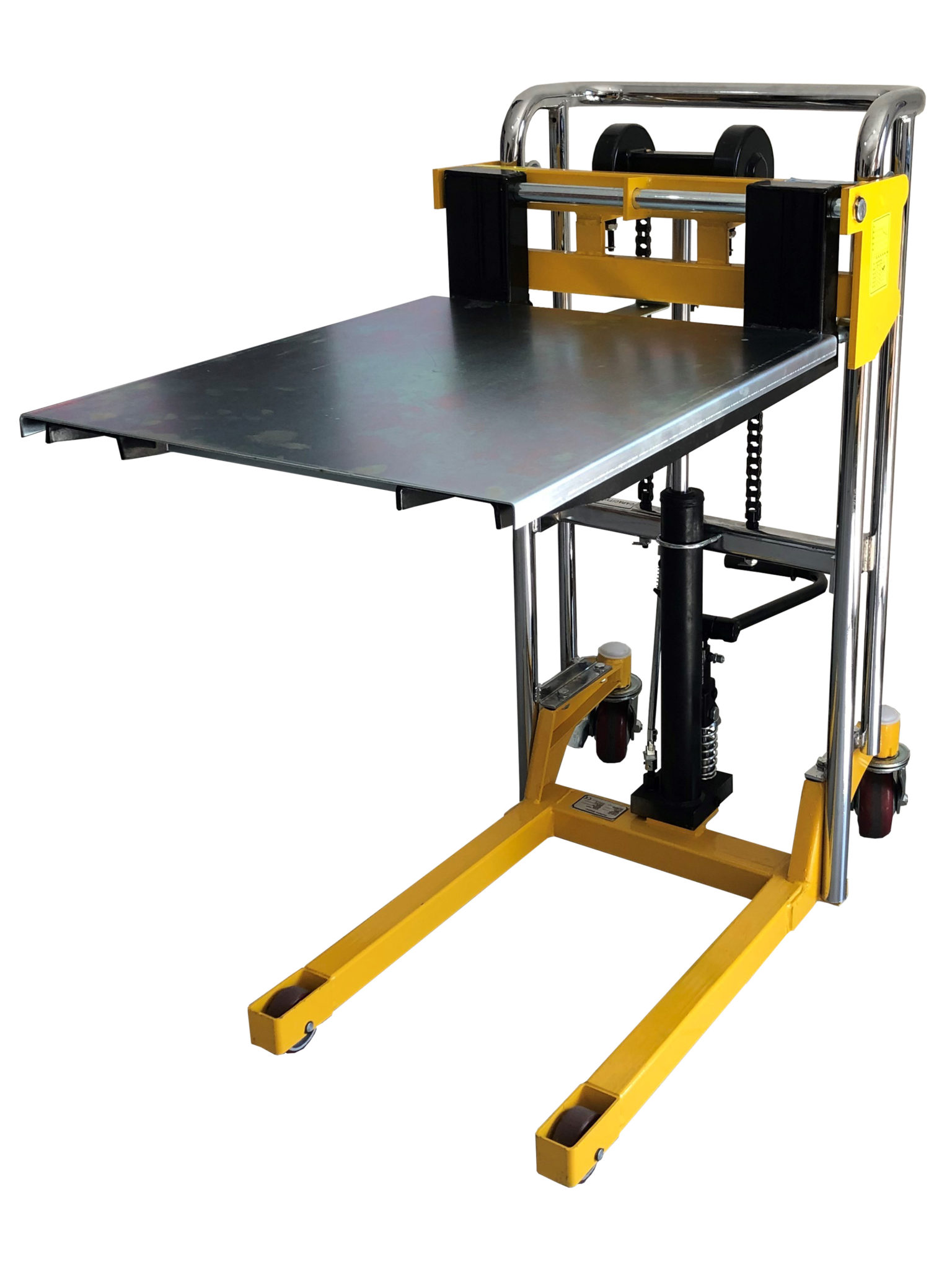

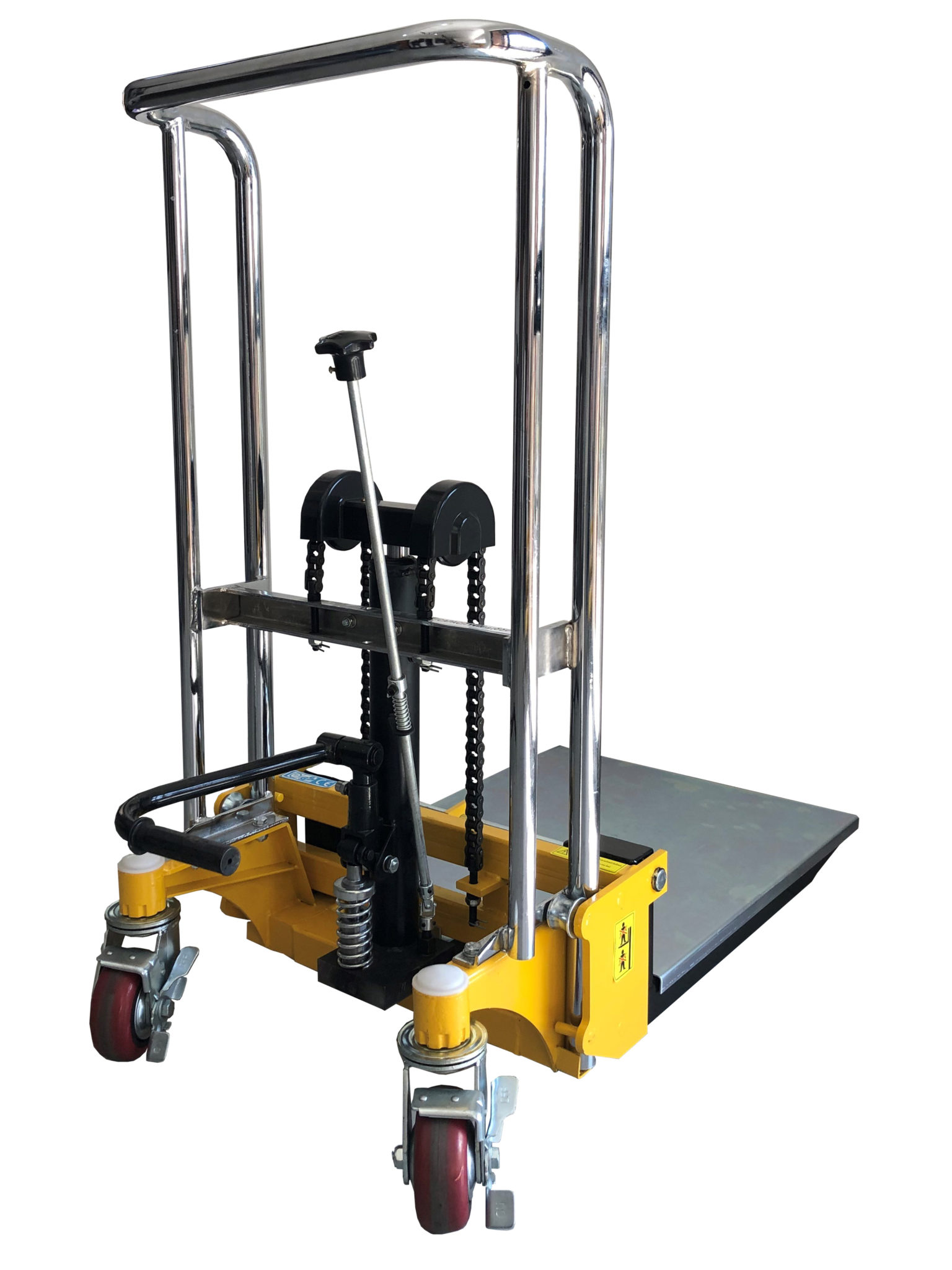

The 400kg Platform Stacker – Light Duty Range is engineered for efficient material handling where full-size forklifts are not required. It allows operators to lift loads manually using a foot-operated hydraulic pump system, then lower them smoothly using a controlled release valve.
The stacker is supplied with a removable platform deck, and many models also feature adjustable forks underneath, making it suitable for both boxed goods and palletised loads.
Its compact frame makes it ideal for use in tight spaces such as storerooms, retail back areas, and small warehouses.
⚙️ Key Features
- Load capacity: 400kg
- Lift height options: 850mm OR 1500mm
- Operation: Manual foot pump hydraulic system
- Lowering system: Controlled descent valve for safety
- Platform: Removable steel deck (multi-use handling)
- Forks: Built-in or adjustable forks (model dependent)
- Frame: Heavy-duty steel construction
- Wheels: PU/nylon steering and load wheels for smooth movement
- Use case: Light industrial lifting and stacking
📐 Typical Specifications
🔸 850mm Model
- Max lift height: 850mm
- Load capacity: 400kg
- Fork length: ~650mm
- Platform size: ~650 × 580mm
- Lowered height: ~85–90mm
- Weight: ~70–80kg
🔸 1.5m Model
- Max lift height: 1500mm
- Load capacity: 400kg
- Platform size: ~650 × 580mm
- Fork length: ~650mm
- Lowered height: ~90–200mm (model dependent)
- Weight: ~80–90kg
🏭 Ideal Applications
- Warehouse picking & stacking
- Retail stockroom operations
- Light manufacturing lines
- Loading/unloading small pallets
- Moving goods onto shelves or benches
- Workbench height lifting tasks
⭐ Benefits
- No electricity required (fully manual)
- Compact and easy to manoeuvre
- Works as platform lifter + mini stacker in one
- Ideal for areas where forklifts are too large
- Safe controlled lowering system
- Cost-effective lifting solution for light loads
