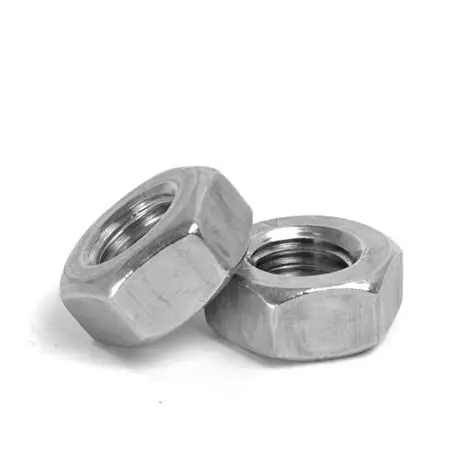

Nuts Hex Din 934 A2 M3 - M30 (Packs of 100)
Nuts Hex Din 934 A2 M3 - M30 (Packs of 100) - Image 2

Nuts Hex Din 934 A2 M3 – M30 (Packs of 100)

Price range: R17,25 through R8 944,70 Incl. vat

Features & Market Uses

  • Versatile Fastener: Used across industrial, automotive, construction, and general assembly applications where sturdy, corrosion-resistant connection is needed.

  • Industry Reliability: Ensures consistent replacement across suppliers due to standardized dimensions. Improves load distribution and simplifies procurement.

  • Material Benefits: A2 stainless resists corrosion in moist or mildly corrosive environments—great for outdoor or industrial use.

  • Fine Engineering: Precisely machined internal threads help prevent loosening and wear, even under vibration.

Sample Specification Table (for your Website)

Hexagon Nut (DIN 934 / ISO 4032), A2 Stainless Steel, Coarse Thread

  • Material: A2 Stainless Steel (304)

  • Size Range: M3 – M30

  • Thread Type: Metric Coarse (Right-hand)

  • Strength Class: A2-70 (~700 MPa Tensile)

  • Finish: Plain or Passivated (smooth, corrosion-resistant)

  • Standards: DIN 934 (withdrawn) / ISO 4032 (current); identical fit

  • Dimensions:

    • M3: ~5.5 mm flats × ~2.4 mm height

    • M30: ~46 mm flats × ~24 mm height
      (precise values per DIN tables)

SKU: NHD 934 A2 Category: Tag:

Description

Product Overview: Hexagon Nut — DIN 934 A2 Stainless Steel (M3–M30)

General Description

These are DIN 934 hexagon nuts, crafted from A2 stainless steel (grade 304) for robust corrosion resistance and enduring performance. The design features six flat sides allowing easy engagement with standard tools. Although DIN 934 has largely been succeeded by ISO 4032, they remain compatible and widely used.

Material & Strength

  • Material: A2 stainless steel (304 grade); ideal for environments prone to moisture or mild corrosion

  • Strength Class: A2-70 offers a tensile strength of approximately 700 MPa, sufficient for moderate-duty fastening tasks.

  • Thread Standard: Metric coarse threads, right-hand orientation. ISO 4032 is interchangeable with DIN 934.

Dimensional Specifications

Feature Description
Range Sizes available from M3 to M30. Fine details like pitch vary per size.
Width Across Flats (s) From ~5.5 mm for M3 up to ~46 mm for M30.
Height (m) Typically ~2.4 mm (M3) to ~24 mm (M30)

Additional information

NHD 934 A2

M3, M4, M5, M6, M8, M10, M12, M14, M16, M18, M20, M24, M30
