Narrow-Span 900 TOWER Aluminum Scaffolding (length) = 1850mm x (width) 900mm x 4200mm(height)

Description

Narrow-Span 900 Tower Aluminum Scaffolding — 4.2m Platform Height

Product Overview

The Narrow-Span 900 Tower is a compact, lightweight aluminum scaffold tower designed for access in tight spaces such as stairwells, narrow corridors, and shelving aisles. With a narrow 900mm width and a robust footprint of 1850mm length, this tower provides safe working platforms up to 4.2 meters in height.

---

Key Features

• Dimensions: 1850mm (L) × 900mm (W) × 4200mm (H) (Platform height 4.2m)

• Lightweight aluminum construction for ease of transport and assembly

• Modular design with quick-lock color-coded hooks for fast and secure assembly

• Trapdoor platform for safe access and working height adjustment

• Four adjustable 200mm swivel castors with locking brakes for mobility and stability

• Four triangular stabilizers to ensure safety at heights over 4.2m (mandatory stabilizers for 4.2m height)

• Self-closing trapdoor platform and toe boards for fall protection

• SANS 51004 and SABS certified to meet stringent South African safety and quality standards

• Maximum permissible platform load: 200 kg/m²

• Maximum safe working load: 700 kg

---

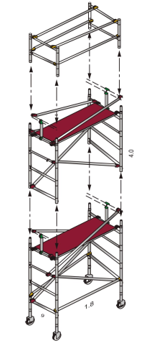

Included Components

• 2 × Four-rung frames

• 2 × Two-rung frames

• 2 × Guard rail frames

• 6 × Diagonal braces (red hooks)

• 6 × Horizontal braces (yellow hooks)

• 1 × Trapdoor platform

• 4 × Triangular stabilizers

• 4 × Adjustable 200mm swivel castors

• Lock braces L4

• 1 × Plywood toe board set



Lead time 3 – 6 working days
