Description

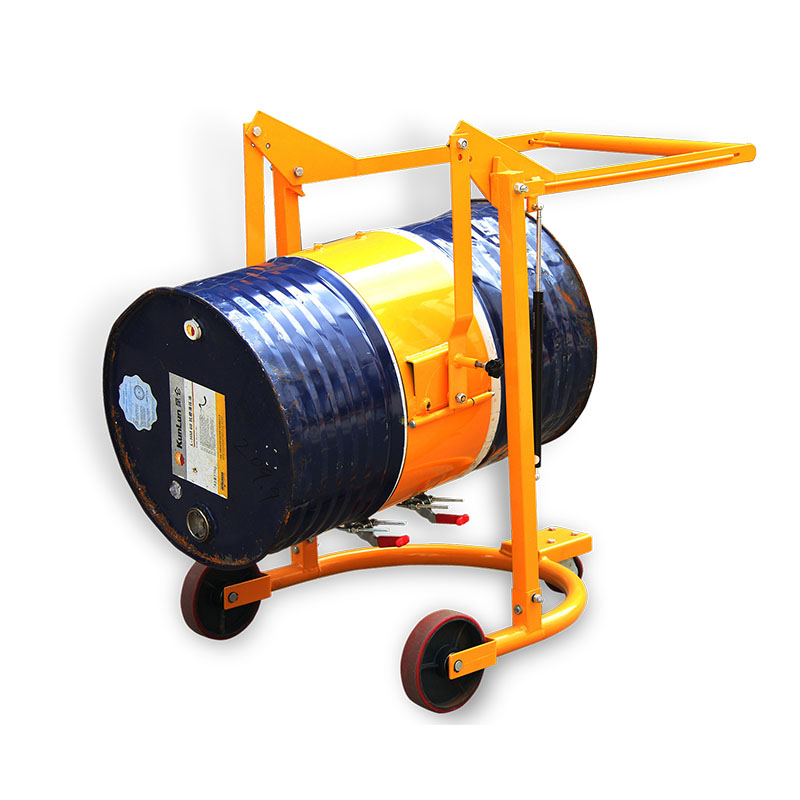

MOBILE STEEL DRUM CARRIER / 300KG (FULL DESCRIPTION)
🏗️ General Definition
A mobile steel drum carrier is:
- A heavy-duty steel-framed trolley or drum handler
- Designed specifically for 210L steel drums (55-gallon drums)
- Fitted with industrial wheels for mobility
- Rated to carry up to 300 kg load capacity
It reduces manual lifting risks and allows safe single-person drum handling.
⚙️ Construction & Design
🔹 Frame
- Made from reinforced mild steel or tubular steel
- Usually powder-coated or painted for corrosion resistance
- Designed to withstand industrial impact and continuous use
🔹 Drum Support System
- Steel cradle, rim clamp, or holding ring
- Secures drum at the upper lip or body
- Prevents slipping during movement
🔹 Mobility System
- Equipped with:
- Large rubber wheels (often ~350 mm diameter)
- Sometimes swivel castors for steering
- Designed for smooth movement on factory floors
🔹 Handle System
- Ergonomic double handles or push/pull grips
- Allows controlled steering and tipping
⚙️ Technical Specifications (Typical)
| Feature | Specification |
|---|---|
| Drum Type | 210L steel drum |
| Load Capacity | 300 kg |
| Frame Material | Powder-coated steel |
| Wheels | 2 large rubber wheels + castors (varies) |
| Operation | Manual (single operator) |
| Weight of unit | ±10–50 kg (model dependent) |
🛠️ Functions
✔ Transporting
- Moves full steel drums across:
- Warehouses
- Production floors
- Loading areas
✔ Lifting & Positioning
- Raises drum slightly off the ground
- Positions drum safely for storage or use
✔ Tilting / Rotating (on advanced models)
Some versions can:
- Tilt drum for controlled pouring
- Rotate drum for mixing or draining
- Lock in vertical or horizontal positions
🏭 Applications
Used in industries such as:
- Chemical manufacturing
- Oil & lubricant handling
- Food processing (industrial liquids)
- Mining and engineering workshops
- Warehousing & logistics
✅ Advantages
- Safe handling of heavy steel drums
- Reduces workplace injuries from lifting
- Improves efficiency and speed
- Allows single-person operation
- Strong and durable for industrial use
⚠️ Limitations
- Limited to 300 kg rated load
- Not suitable for damaged or unstable drums
- Requires flat or stable flooring for safe use
- Manual operation may require effort on rough surfaces
🧠 Simple Summary
A Mobile Steel Drum Carrier / 300kg is a strong wheeled trolley system designed to safely move 210L steel drums in industrial environments, offering stability, mobility, and reduced manual handling risk.
