LOCKOUT BBL BLIND FLANGED 33MM DIA 95-370 MM
LOCKOUT BBL BLIND FLANGED 33MM DIA 95-370 MM - Image 2
LOCKOUT BBL BLIND FLANGED 33MM DIA 95-370 MM - Image 3
LOCKOUT BBL BLIND FLANGED 33MM DIA 95-370 MM - Image 4
LOCKOUT BBL BLIND FLANGED 33MM DIA 95-370 MM - Image 5
LOCKOUT BBL BLIND FLANGED 33MM DIA 95-370 MM - Image 6
LOCKOUT BBL BLIND FLANGED 33MM DIA 95-370 MM - Image 7
LOCKOUT BBL BLIND FLANGED 33MM DIA 95-370 MM - Image 8

LOCKOUT BBL BLIND FLANGED 33MM DIA 95-370 MM

Original price was: R1 650,00.Current price is: R1 493,51. Incl. vat

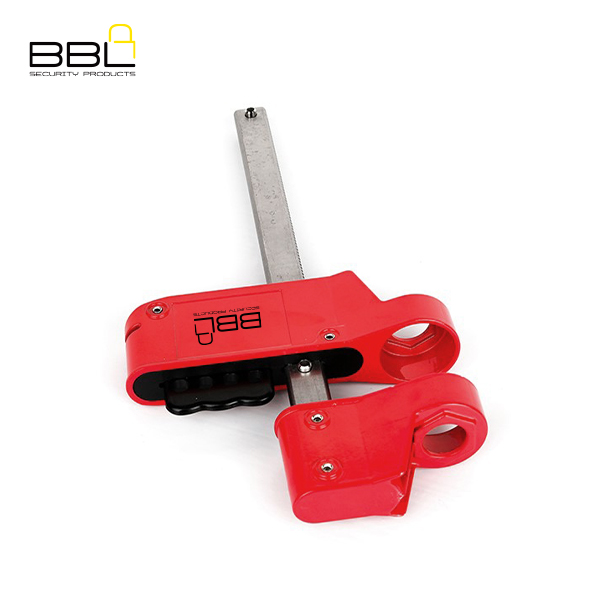

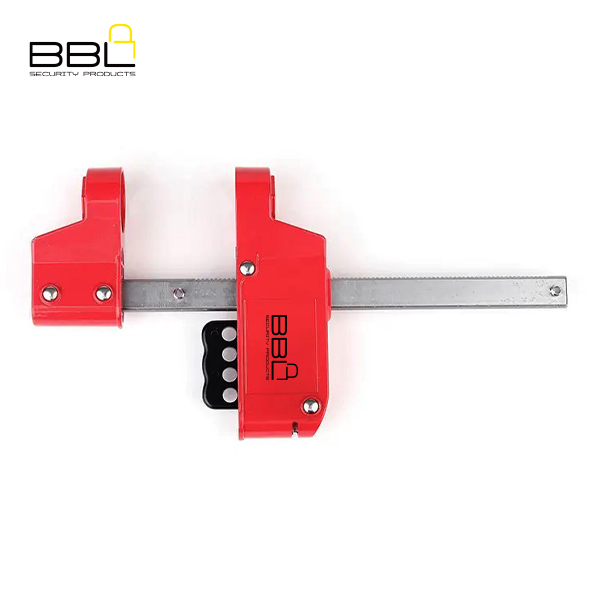

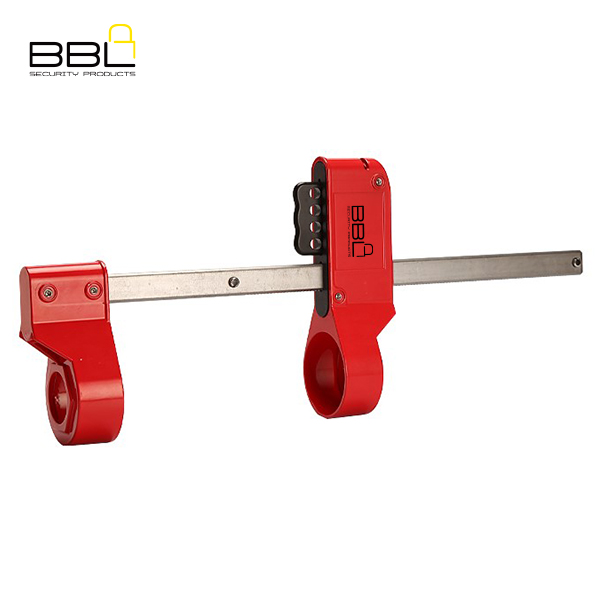

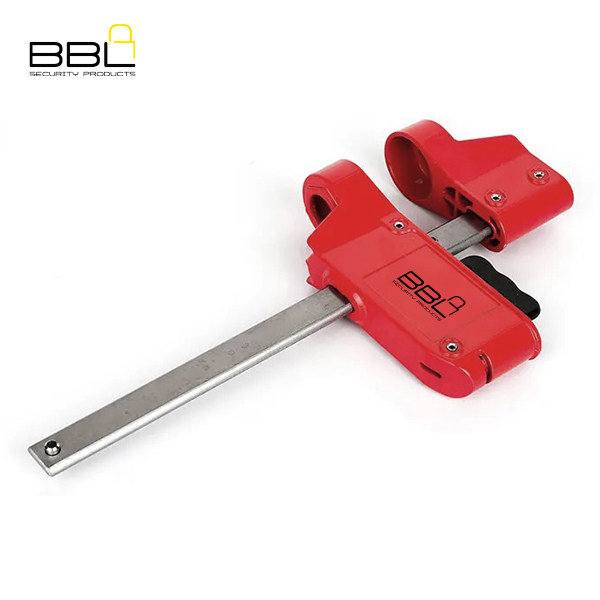

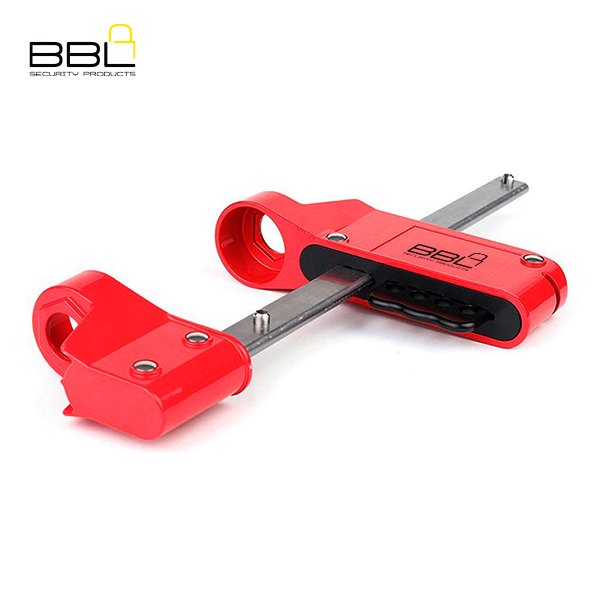

BBL Blind Flange Valve Lockout BBLO-FL02

BBL Blind Flange Valve Lockout BBLO-FL02
BARCODE: N/A

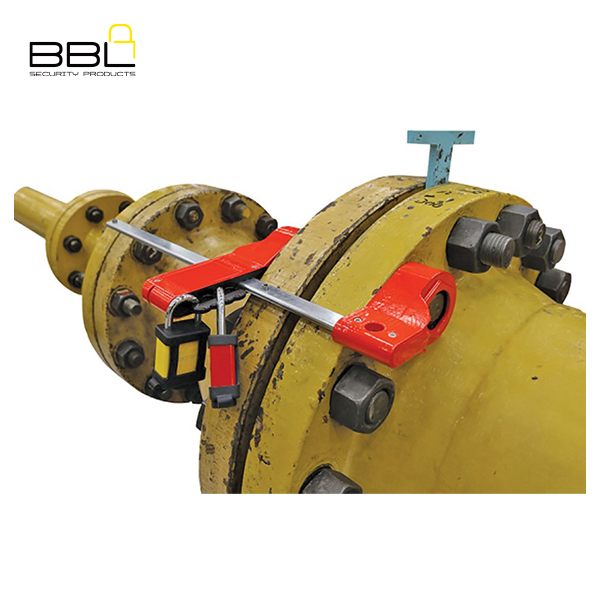

The Blind Flange Lockout device is a physical, best practice solution for pipeline maintenance. The adjustable cup allows for a secure fit that conceals and locks out access to nuts holding a blind in place. Workers can perform maintenance with confidence that the blind they placed on a pipeline will not be removed until all workers have removed their padlocks. 4 locking holes allow for multiple workers to lockout device at one time.

  • The Pipe Blind Flange Lockout Device BD-FL02 for use with nut diameter from 33mm to 48mm.
  • Lockable width: 95mm – 370mm.
  • Durable aluminum and hardened steel construction withstands conditions indoors and out.
  • Device fully conceals flange bolts preventing access to the blind until all work has been completed.
  • Adjustable device provides a tight fit, adapting to multiple flanged pipe applications.
  • Four lockout holes allow for multiple workers to lockout device at one time.
  • Accepts padlocks shackle up to dia 7mm.
SKU: BBLO-FL02 Category: Brand:

Description

Description

BBL Blind Flange Valve Lockout BBLO-FL02
BARCODE: N/A

The Blind Flange Lockout device is a physical, best practice solution for pipeline maintenance. The adjustable cup allows for a secure fit that conceals and locks out access to nuts holding a blind in place. Workers can perform maintenance with confidence that the blind they placed on a pipeline will not be removed until all workers have removed their padlocks. 4 locking holes allow for multiple workers to lockout device at one time.

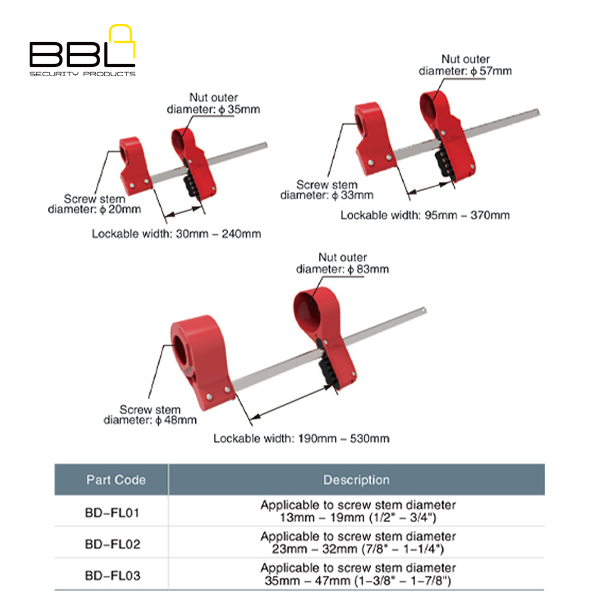

  • BD-FL01 – Blind flange lockout device small (bolt nut ø 19 mm – 28.5mm)
  • BD-FL02 – Blind flange lockout device medium (bolt nut ø 33mm – 48mm)
  • BD-FL03 – Blind flange lockout device large (bolt nut ø 52mm – 70mm)



BBL Blind Flange Valve Lockouts

Code Description A B C D Barcode
BBLO-FL01 Blind Flange Valve Lockout – FL01 7mm 70mm 26mm 32mm 4003318003684
BBLO-FL02 Blind Flange Valve Lockout – FL02 7mm 53mm 35mm 17mm 4003318777950
BBLO-FL03 Blind Flange Valve Lockout – FL03 7mm 40mm 59mm 50mm 4003318642951
BBLO-F37-1 Pipe Blind Flange Valve Lockout F37 7mm 69mm 96mm 64mm 4003318642975
BBLO-F37-2 Pipe Blind Flange Valve Lockout F37 7mm 69mm 96mm 64mm 4003318642975
