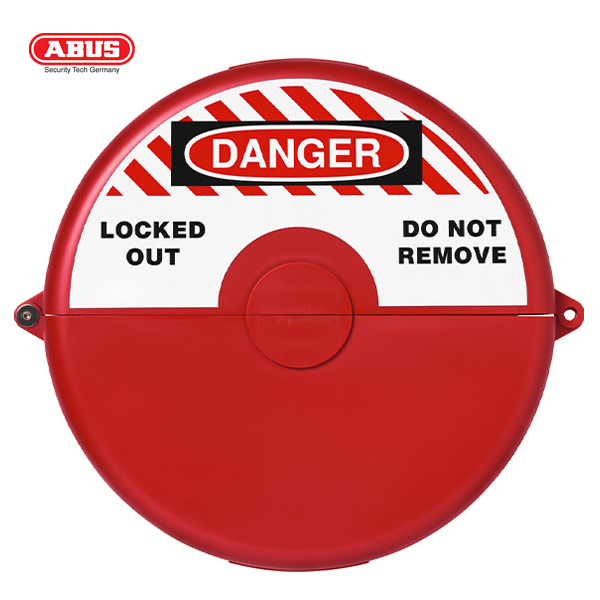

ABUS Valve Lockout V313
BARCODE: 4003318003677

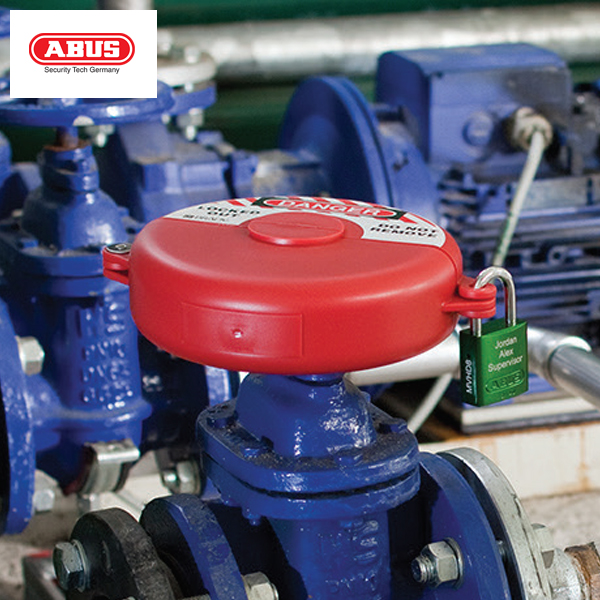

- Block access to gate valves during maintenance
- High-quality polypropylene: long-lasting, robust and non-conductive
- Five sizes: Valves from 1” to 13”
- Holds 1 padlock
- Unique, predetermined breaking point at the top for valves with thread
- Stickers in various languages included
ABUS Valve Lockouts
| Code | Description | A | B | C | D | E | F | Barcode |
|---|---|---|---|---|---|---|---|---|
| V303 | Valve lock out red | 9mm | 121mm | 80mm | 36mm | 22mm | 70mm | 4003318003622 |
| V305 | Valve lock out red | 9mm | 185mm | 142mm | 51mm | 31mm | 130mm | 4003318003646 |
| V307 | Valve lock out red | 9mm | 225mm | 181mm | 61mm | 42mm | 170mm | 4003318003653 |
| V310 | Valve lock out red | 9mm | 319mm | 277mm | 77mm | 55mm | 267mm | 4003318003660 |
| V313 | Valve lock out red | 9mm | 406mm | 364mm | 77mm | 53mm | 350mm | 4003318003677 |
Technical Data:
V303: 1”-2,5”
V305: 2,5”-5”
V307: 5”-6,5”
V310: 6,5”-10”
V313: 10”-13”
A = Shackle Diameter
B = Length
C = Width
D = Depth
E = Inside Height
F = Inner Diameter
