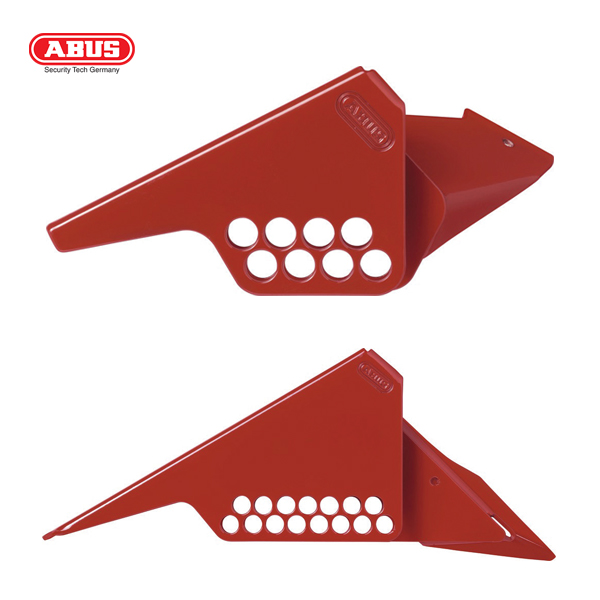

ABUS Block Access Ball Valve Lockout V423
BARCODE: 4003318002911

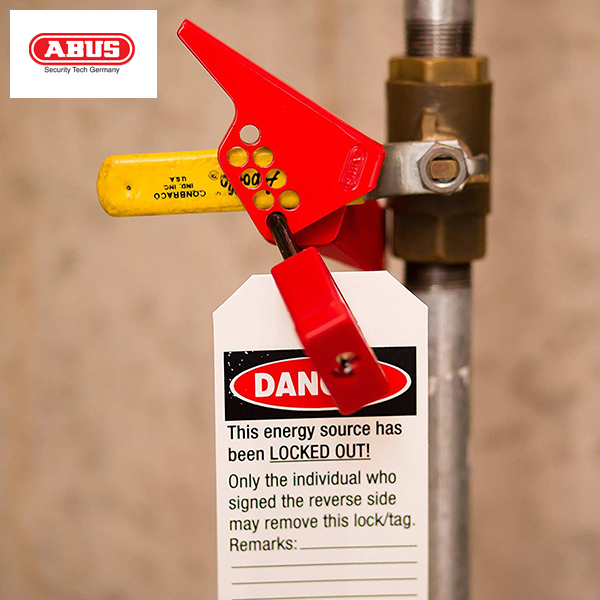

- Block access to ball valves during maintenance
- Stable and secure, made from powder-coated steel
- Two sizes for most common ball valves
- A number of holes for exact positioning of the padlock gives more stability
- Best used on hard-to-reach pipes
Technical Data:
V423: Small 0,25” to 1”
V426: Large 1,25” to 3”
A = Shackle Diameter
B = Length
C = Width
D = Depth
E = Max handle thickness
F = Max handle width
B = Length
C = Width
D = Depth
E = Max handle thickness
F = Max handle width
ABUS Block Access Ball Valve Lockouts
| Code | Description | A | B | C | D | E | F | Barcode |
|---|---|---|---|---|---|---|---|---|
| V423 | Ball valve lockout red | 7mm | 90mm | 52mm | 63mm | 7mm | 37mm | 4003318002911 |
| V426 | Ball valve lockout red | 7mm | 140mm | 125mm | 122mm | 10mm | 50mm | 4003318003004 |
Description
ABUS Block Access Ball Valve Lockout V426
BARCODE: 4003318003004
- Block access to ball valves during maintenance
- Stable and secure, made from powder-coated steel
- Two sizes for most common ball valves
- A number of holes for exact positioning of the padlock gives more stability
- Best used on hard-to-reach pipes
Technical Data:
V423: Small 0,25” to 1”
V426: Large 1,25” to 3”
A = Shackle Diameter
B = Length
C = Width
D = Depth
E = Max handle thickness
F = Max handle width
B = Length
C = Width
D = Depth
E = Max handle thickness
F = Max handle width
ABUS Block Access Ball Valve Lockouts
| Code | Description | A | B | C | D | E | F | Barcode |
|---|---|---|---|---|---|---|---|---|
| V423 | Ball valve lockout red | 7mm | 90mm | 52mm | 63mm | 7mm | 37mm | 4003318002911 |
| V426 | Ball valve lockout red | 7mm | 140mm | 125mm | 122mm | 10mm | 50mm | 4003318003004 |
