📌 General Description:

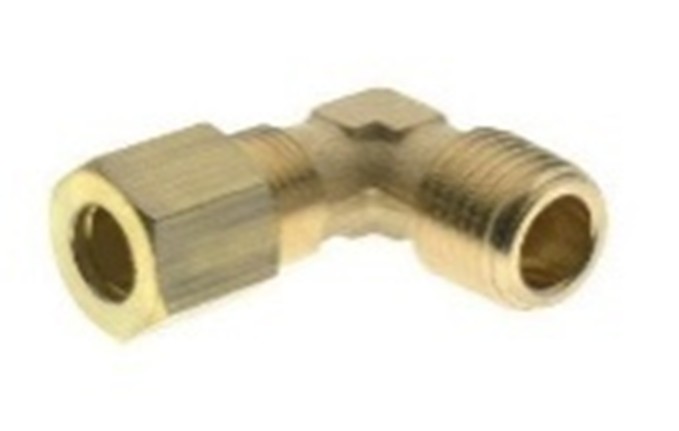

Compression elbow fittings are mechanical connectors used to join two tubes or pipes at a 90-degree angle. These fittings provide a secure, leak-free connection without the need for soldering, threading, or welding. Commonly used in hydraulic, pneumatic, gas, and water systems, they are ideal for high-pressure and vibration-prone environments.
📐 Size Range:
-
Metric to Imperial Conversion Range:
-
Smallest Size: 4mm (OD) tube to 1/8″ BSP/NPT male or female thread.
-
Largest Size: 16mm (OD) tube to 1/2″ BSP/NPT male or female thread.
-
🛠️ Connection Types:
-
Tube-to-Tube Elbow (e.g., 4mm tube to 4mm tube)
-
Tube-to-Male Thread Elbow (e.g., 6mm tube to 1/4″ BSPT/NPT male)
-
Tube-to-Female Thread Elbow (e.g., 8mm tube to 3/8″ BSPP/NPT female)
⚙️ Technical Specifications:
| Parameter | Details |
|---|---|
| Material Options | Brass (standard), Stainless Steel 316, Carbon Steel |
| Seal Type | Metal-to-metal or elastomeric seal (depending on application and material) |
| Working Pressure | Up to 400 bar (depending on size and material) |
| Temperature Range | -40°C to +200°C (material-dependent) |
| Thread Standards | BSPP, BSPT, NPT, ISO Metric |
| Tube OD Compatibility | 4mm, 6mm, 8mm, 10mm, 12mm, 16mm |
| Thread Sizes | 1/8″, 1/4″, 3/8″, 1/2″ |
