Description
Door Specification
For Individual Doors:
Max door height (mm) 2400
Max door weight 100kg
Max door width (mm) 1000
Max door thickness (mm) 12 (tempered glass)
44 (timber door)
Door height ≤ 3 times door width
Timber doors can be solid or glazed.
Doors must be constructed with solid top and bottom rails for secure fixing of hangers and
guide rails.
Gear Specification
Track:
Material 25ømm Stainless Steel Pipe
Standard Lengths (mm) 2000, 3000
Kits:
The Lucia system comes standard in kit form.
NB: Pipe not included in kit
Kits include: 2 x Hangers
2 x Stops
4 x Fixing Brackets
1 x Finger Pull (not included for timber doors)
1 x Guide
Kit Options:
Hardware available in Polished or Satin Stainless Steel

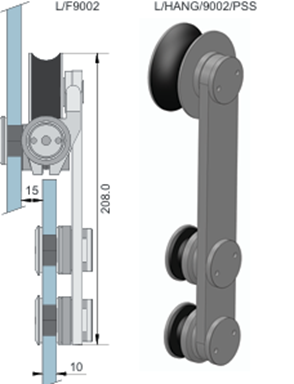

L/F9002 For glass door fixing to glass panel
L/F9003 For glass door fixing to wall
L/F9010 For timber door fixing to wall

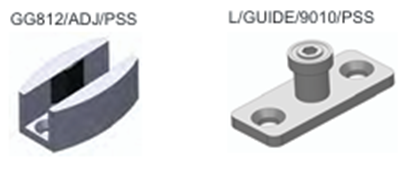

Guides:
Glass Doors GG812/ADJ/PSS
Wood doors L/GUIDE/9010/PSS

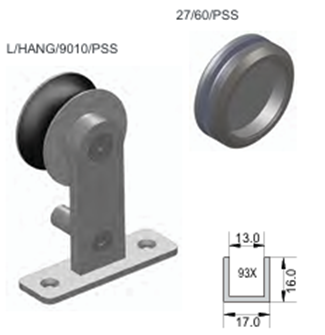

Channel:
Fitted to underside of timber door 93X aluminum extrusion
Standard Lengths: 93X (mm) 1500;1800;2400;3000;3600;6000
Accessories: Flush pulls for timber doors
