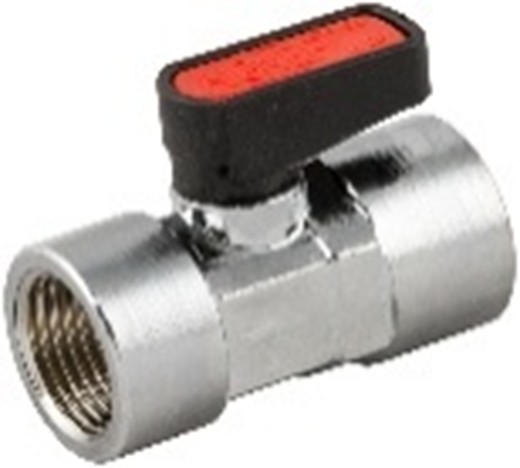

1/8″ Female Ball Valve to 1/4″ Female Ball Valve

Description

Description:

This component is a compact inline ball valve assembly or adapter designed to connect a 1/8-inch female threaded (FNPT) fitting on one end to a 1/4-inch female threaded (FNPT) fitting on the other. It enables controlled fluid or gas flow between lines of different sizes, using durable, corrosion-resistant materials.

Key Specifications:

• Valve Type: Inline Ball Valve

• Connection Type:

  • Inlet: 1/8″ FNPT (Female National Pipe Thread)

  • Outlet: 1/4″ FNPT

• Material Options:

  • Brass (general purpose)

  • 316 Stainless Steel (corrosive or high-pressure environments)

  • PVC or CPVC (for chemical compatibility or lightweight applications)

• Pressure Rating: Varies by material, typically:

  • Brass: 600–1000 PSI WOG (Water, Oil, Gas)

  • Stainless Steel: Up to 2000 PSI

• Temperature Rating:

  • Brass: -20°F to 300°F

  • Stainless Steel: -65°F to 450°F

  • PVC: 33°F to 140°F

• Handle Type:

  • Lever Handle (standard)

  • Wing Handle (space-saving)
