Sale!

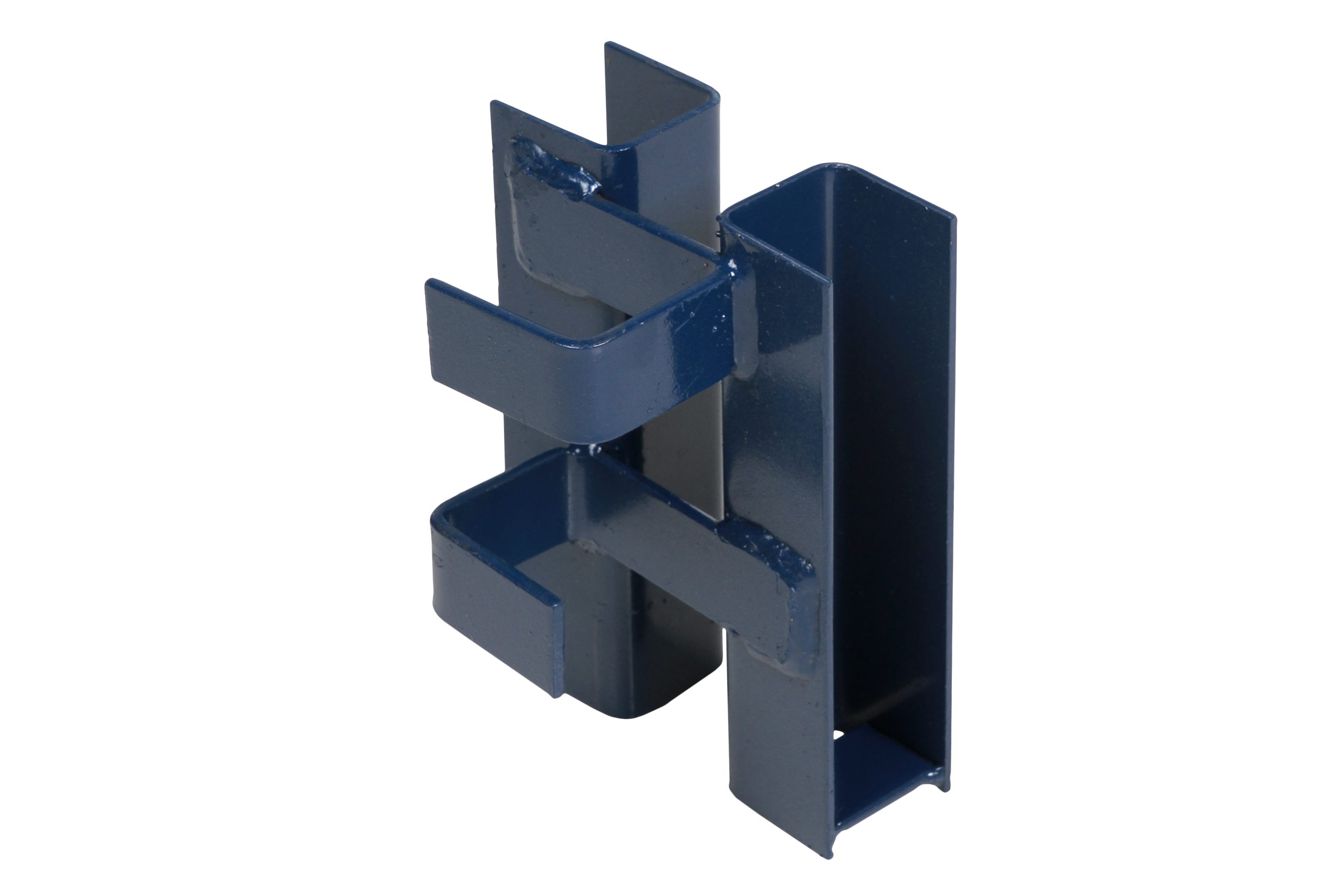

Quickstage Steel Scaffolding Toe board Bracket(Clip)

Original price was: R160,00.Current price is: R118,68. Incl. vat

Summary Table

Feature	Details
Function	Attaches toe boards vertically to standards, securing work platform edge
Also Called	Toe‑board clip, toe‑board bracket, end toe‑board bracket
Material	Mild steel / Q235 steel
Finish Options	Hot‑dip galvanised, standard galvanised, or painted
Dimensions	~120 × 50 × 50 mm
Weight	~0.8 kg (Ireland); ~2 kg (RSA variant)
Attachment Method	Clamped with captive wedge—no loose fittings
Standards Compliance	AS/NZS 1576, AS/NZS 1577

Brackets clamp directly onto scaffold standards using a captive wedge mechanism
Standard installation seen in staircase tower assembly PDFs, showing brackets placed at landing levels followed by steel toe boards slotted into place .
Compatible with Kwikstage/Quickstage systems, conforming to AS/NZS 1576, BS 1139, and other international standards

SKU: SAS-014 Category: Steel Scaffolding

The bracket is a steel clip/bracket designed to attach toe-boards (steel battens) vertically onto scaffold standards (vertical posts), preventing tools or debris from falling off the platform
It is known as a toe-board bracket, toe‑board clip, or end toe‑board bracket (especially for perimeter or end placements)
Installation involves sliding or clamping the bracket onto the standard and securing it with a captive wedge or clip, without the need for loose nuts or bolts

Constructed from high-strength mild or Q235 steel, in accordance with relevant standards (e.g., AS/NZS 1576)
Surface finishes include hot-dip galvanizing, standard galvanizing, or painted/coated options

Used to secure one or two steel toe boards along scaffold ledgers and perimeters
Facilitates quick and reliable installation at all platform edges, staircase landings, and cantilevered sections within Quickstage/Kwikstage systems
